4" PVC Simplex Basket Strainer with EPDM Seal, Threaded Connections
4" PVC Simplex Basket Strainer with EPDM Seal, Threaded Connections
SKU:STR-e73fec
Efficiently protect system components with the 4" PVC Simplex Basket Strainer featuring EPDM seals and threaded connections.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
4" PVC Simplex Basket Strainer with EPDM Seal, Threaded Connections
$129.99
Quantity: 1
Claim Your Seller Account
4" PVC Simplex Basket Strainer with EPDM Seal, Threaded Connections
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4" PVC Simplex Basket Strainer from the SB Series is designed to protect system components by efficiently removing dirt and debris. Featuring a 1/8" standard basket perforation and EPDM seals, this strainer ensures optimal filtration while allowing smooth process media flow. With a pressure rating of 150 psi at 70°F, this strainer is suitable for industrial applications requiring high-performance filtration. The robust PVC construction coupled with threaded end connections makes installation and maintenance easy, enhancing operational efficiency.
Product Specifications
Additional Information Additional Information

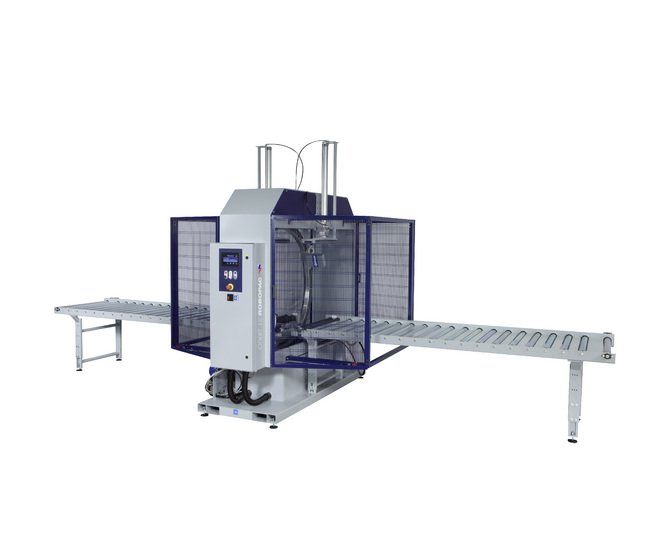

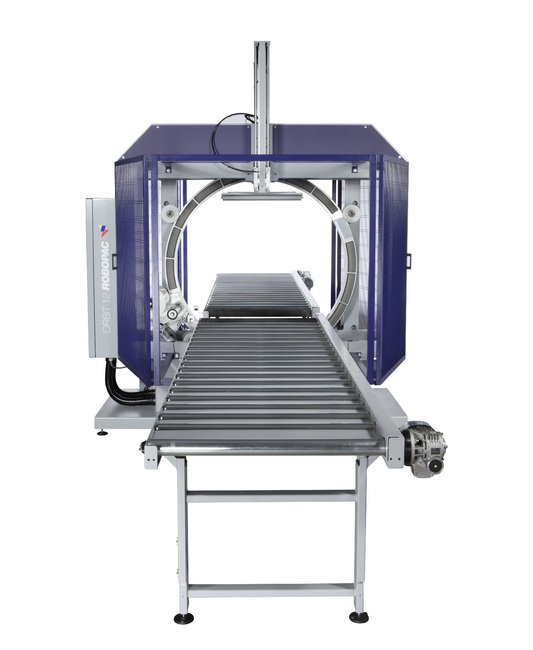

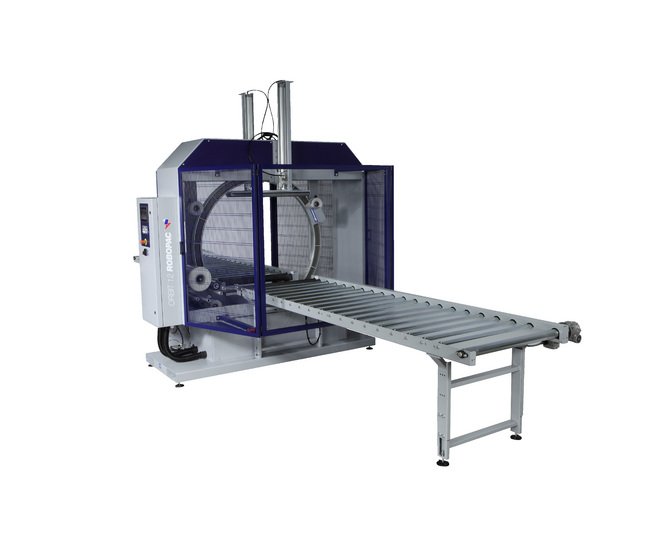

Robopac® leads the industry with innovative products and solutions. The new Orbit machines prove that we are committed to providing you with the best machines combined with the latest technology. Our engineers wouldnât allow us to do it any other way.Built for Rugged OperationsSafe & Simple OperationDoesn't Cause Product DamageWarranty/Extended WarrantyConveyor Infeed & OutfeedAutomatic Cycle StartIcon Driven Color Touchscreen
Color Touch Screen Color Touch Screen
The new 7-inch, 65,000 color touch screen provides complete control of all processes with the touch of a finger. Accurate, easy to understand controls are displayed on every screen allowing for quick and simple operation. Store up to 20 unique, user-defined wrapping programs.Adjustments capable via touchscreen:ParametersNumber of wrapsWrapping start timeWrapping end timeCyclesTotal WrappingHead and tail wrappingBand wrappingWrapping with reinforcementBy-passPushbutton CommandsEmergency/Stop push buttonReset buttonStart cycle buttonStop cycle buttonWrapping MenuColor display clearly shows available wrapping options. The touchscreen makes selecting a wrapping pattern simple and provides immediate visual confirmation of selected pattern.
Film Specifications Film Width
2 to 10 in
Film Specifications Maximum Spool External Diameter
10 in
Innovative Features Automatic Cut And Clamp Unit
Highly reliable, dual rod cut and clamp system fully automates the wrapping process.
Innovative Features Guides
Infeed and outfeed skid side guides can be manually adjusted to better center products of variable widths. Idle rollers allow products to convey smoothly during the entire wrapping process.
Innovative Features Pneumatic Top Platens
Infeed and outfeed units automatically adjust to ensure proper stabilization of the product. The length of the run can be adjusted manually, if needed, to compensate for products of varying height.
Innovative Features Ring
Single-cast aluminum ring provides strength and reliability.

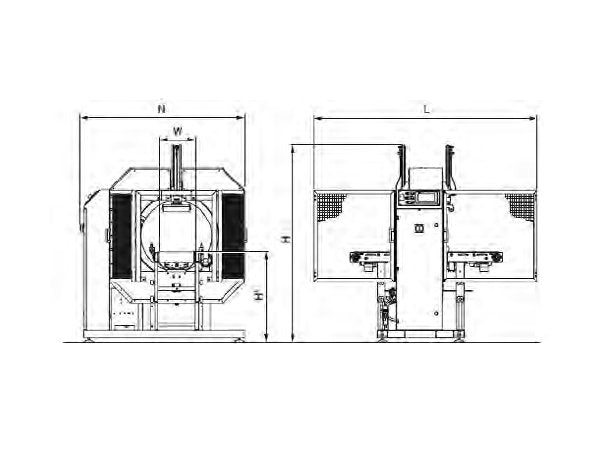

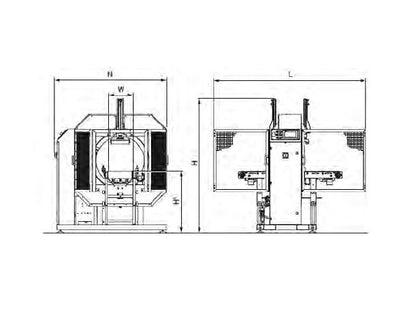

Machine Dimensions Height
106 in
Machine Dimensions Height1
31.5 to 43 in
Machine Dimensions Length
88 in
Machine Dimensions Width
92.5 in
Minimum Workable Dimensions Minimum Workable Dimensions
6 x 6 in
Minimum Workable Dimensions Note For Minimum Workable Dimensions
Dimensions refer to infeed with conveyor belts on rollers. For other types of conveyors, maximum workable dimensions will be provided by Robopac®.
Optimal Wrapping Condition Optimal Wrapping Condition
For best results while wrapping the load, the center of the Orbit rotating ring must fall within the product pro?le as shown. Orbit machines allow you to adjust the height of the conveyor, except the Orbit 4, which is fixed.
Safety Safety

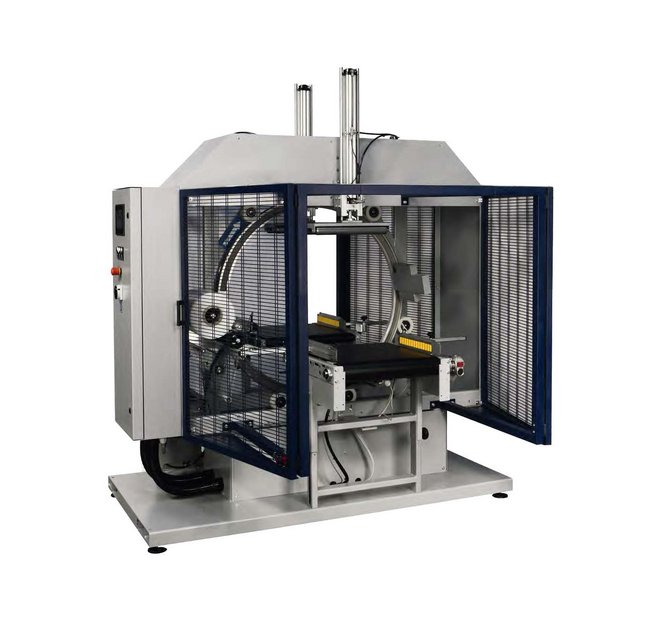

Robopac® understands the importance of plant safety in todayâs manufacturing environment. Our engineers have incorporated features designed to reduce possible injuries while maintaining the highest possible output.Every unit features electro-welded mesh doors that provide easy access for machine maintenance. Each door is equipped with a safety micro switch that prohibits machine operation if open to guarantee operator safety.
Specifications Type
Stretch
Technical Features Compressed Air Consumption
14.3 NI/Cycle
Technical Features Constant Film Tensioning
Yes
Technical Features Core Diameter
3 in
Technical Features Frequency
50 Hz | 60 Hz
Technical Features Fully Automatic Wrapping Cycle
Yes
Technical Features Installed Power
2.5 hp | 2 kW
Technical Features Maximum External Diameter
10 in
Technical Features Maximum Rotation Speed
58 rpm
Technical Features Phase
3
Technical Features Pneumatically Operated Cold Cutting And Clamp
Yes
Technical Features Pneumatic Cold Cutting And Clamping Unit
Standard
Technical Features Pneumatic Pressure Units For Infeed And Outfe
Standard
Technical Features Powered Conveyors For Infeed And Outfeed
33.5 in | 850 mm
Technical Features Power Supply Voltage
480 V
Technical Features Power Transmission
Belt Driven Rotation
Technical Features Pre Stretch
Friction Roll
Technical Features Spool Unit With Frictioned Roll
Yes
Technical Features Working Pressure
90 psi | 6 bar
Technical Features Working Pressure Tolerance
1 bar
Technical Features Wrapping Cycle
Banding | Fully Automatic | Head-Tail Only
Wrapping Dimensions Wrapping Dimensions
Maximum product width and height dimensions directly affect each other. As the maximum product width increases the maximum product height decreases; as well, when the maximum product width decreases the maximum product height increases as the charts above show. Adjusting the conveyor height also affects the maximum height and width of the product. Orbit machines allow you to adjust the height of the conveyor, except the Orbit 4, which is fixed.
