4" Spinmeister Extreme Duty Inlet Air Filter with Paper Element
4" Spinmeister Extreme Duty Inlet Air Filter with Paper Element
SKU:SPI-160724
Maximize filter longevity in high dust settings with the 4" Spinmeister Extreme Duty Inlet Air Filter. Tailorable for precision applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
4" Spinmeister Extreme Duty Inlet Air Filter with Paper Element
$289.99
Quantity: 1
Claim Your Seller Account
4" Spinmeister Extreme Duty Inlet Air Filter with Paper Element
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

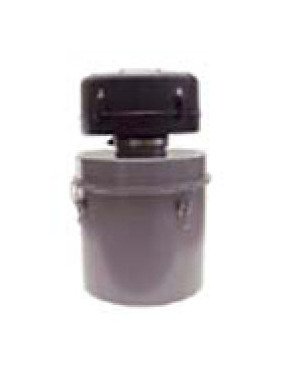

The 4 Inch Spinmeister Extreme Duty Inlet Air Filter with Paper Element is designed for high dust environments, significantly extending filter life. This centrifugal flow filter achieves 85% efficiency at 15 microns or larger, followed by a 99%+ efficient pleated element. Made of durable composite material, it offers tailored configurations for specific applications, ensuring optimal filtration in diverse settings.
Product Specifications
Dimensions Dimension A
19-3/4 in
Dimensions Dimension B
4 in
Dimensions Dimension C
11 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
32 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Paper
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
4 in
Specifications Rated Flow
250 scfm
Specifications Type
C
