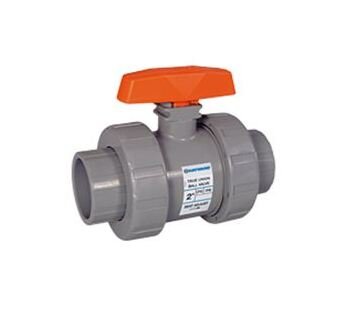

4" True Union CPVC Ball Valve with FPM O-rings
4" True Union CPVC Ball Valve with FPM O-rings
SKU:TRU-254458
High-quality 4" True Union CPVC Ball Valve with FPM O-rings, threaded connections, bi-directional flow, and NSF/ANSI 61-G listed.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
4" True Union CPVC Ball Valve with FPM O-rings
$89.99
Quantity: 1
Claim Your Seller Account
4" True Union CPVC Ball Valve with FPM O-rings
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4" True Union CPVC Ball Valve from the TB Series is designed with high-quality CPVC material and FPM O-rings for durability and reliability. With threaded end connections and a Cv Coefficient of 600.0, this bi-directional valve ensures efficient flow control. Meeting NSF/ANSI 61-G standards, this valve is suitable for a wide range of applications. Rated at 235 PSI, this valve is a robust choice for industrial and institutional settings.
Product Specifications
Dimensional Attributes A
12.30 in | 312.42 mm
Dimensional Attributes B
4.52 in | 114.81 mm
Dimensional Attributes C
8.56 in | 217.42 mm
Dimensional Attributes D1
6.50 in | 165.10 mm
Dimensional Attributes D2
6.50 in | 165.10 mm
Dimensional Attributes H
7.37 in | 187.20 mm
Specifications Body Material
CPVC
Specifications Cv Coefficient
600.0
Specifications End Connection
Threaded
Specifications Flow Configuration
Bi-directional
Specifications Seals
FPM
Specifications Series
TB
Specifications Size
4"
Specifications Weight
20.30 lb | 9.22 kg
