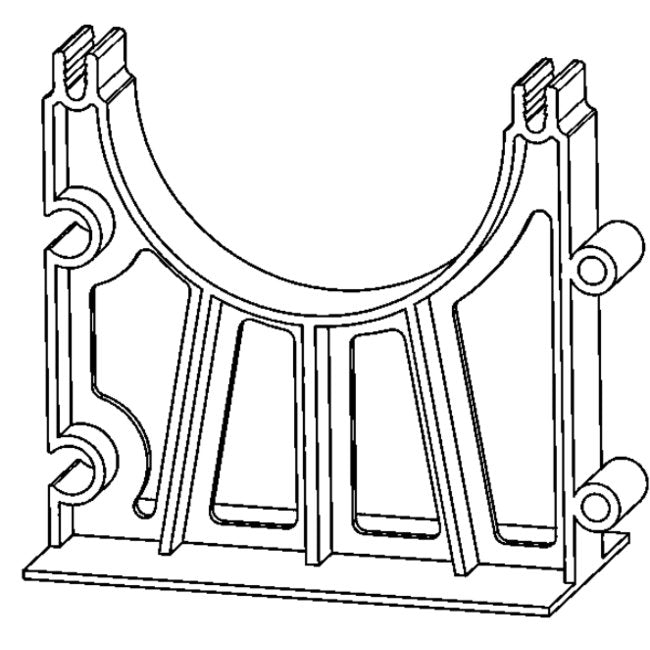

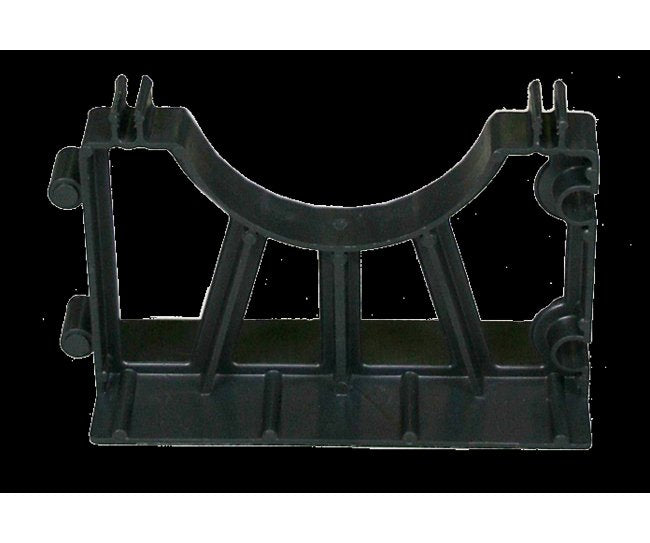

4 x 2 PVC Conduit Base Spacer for Underground Ducts
4 x 2 PVC Conduit Base Spacer for Underground Ducts
SKU:PVC-0ad0fb
Secure and align underground ducts effortlessly with the 4 x 2 PVC Conduit Base Spacer.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
4 x 2 PVC Conduit Base Spacer for Underground Ducts
$49.99
Quantity: 1
Claim Your Seller Account
4 x 2 PVC Conduit Base Spacer for Underground Ducts
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4 x 2 PVC Conduit Base Spacer is a vital component for securing duct banks underground. Featuring a modular design, this spacer ensures seamless interlocking to prevent duct separation during backfilling. With a sturdy construction and interlocking mechanism, assembly is swift and hassle-free. This spacer eliminates the need for additional top caps when used in conjunction with Cap-Lok accessories, providing a cost-effective solution. Designed for easy installation, it simplifies alignment of duct bank sections, requires no banding, and offers reliable support for duct installations. Perfect for both EB and DB installations, this spacer guarantees precise spacing for ducts, enhancing efficiency and durability in underground applications.
Product Specifications
Features
Alignment of the duct bank sections is uncomplicated with this completely locked-in construction. | Banding is not necessary. | Field Assembly is fast and secure. | Only two components, base and intermediate, are needed. | Spacers lock firmly together, preventing separation. | They snap together, vertically, slide together horizontally. | To prevent the top tier from floating during encased burial, we recommend using tie wire, cap straps, or a base spacer on the top run for a flat surface during concrete encasement depending on your job specifications.Used in both EB and DB installations | With the Vertical-lok spacer, ducts are accurately separated.
Specifications Pipe Diameter
4 in
Specifications Pipe Separation
2 in
Specifications Short Description
GSB4X200125 SPACER BASE 4X2
Specifications Standard Pack
140
Specifications Type
Single Base Spacer
Specifications Weight
37.0 lb
