40 Inch Carriage Container Dumper
40 Inch Carriage Container Dumper
SKU:CON-dcf654
Compact and efficient hydraulic container dumper with 40 inch carriage width and 149 inch arc height. Meets ISO 9001:2015 & UL standards.
Regular price
$7,399.99
Regular price
Sale price
$7,399.99
Unit price
per
Initiate Order
40 Inch Carriage Container Dumper
$7,399.99
Quantity: 1
Claim Your Seller Account
40 Inch Carriage Container Dumper
$7,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

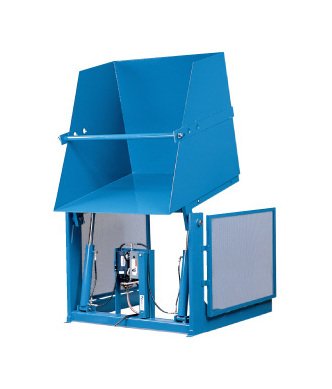

The DP Series 40 Inch Carriage Container Dumper by Advance Lifts is a compact hydraulic dumper designed for efficient material handling. With a capacity of 4000 lb and a dump height of 60 inches, this dumper features a 40-inch carriage width and a 149-inch arc height, suitable for various applications. It meets International Organization for Standardization (ISO 9001:2015) and Underwriters Laboratories (UL) certifications, ensuring quality and safety compliance.
Product Specifications
Accessories Accessories

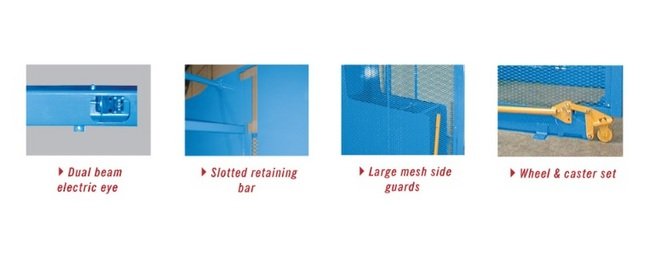

Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits

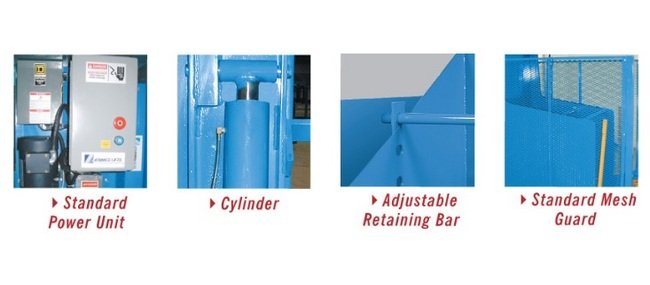

Designed for a minimum size footprint.Adjustable retaining bar.The cylinders are machine grade single acting style.All of the controllers are Underwriter Laboratory listed assemblies.All shafts, axles and pins are hard chrome plated.All bearings are lifetime lubricated.These hydraulic dumpers are fully primed and finished with baked enamel.

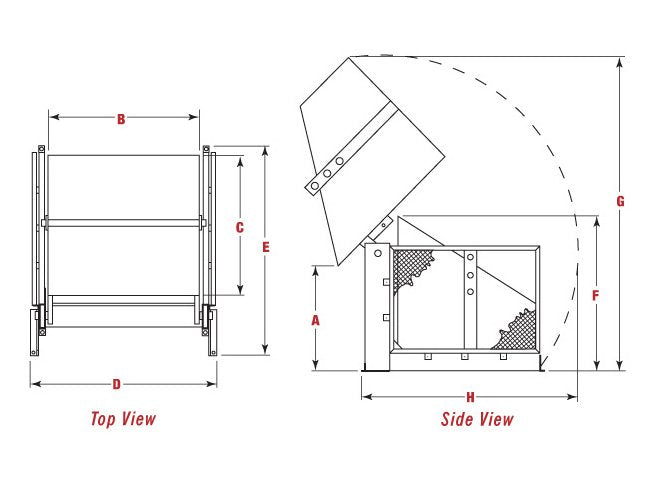

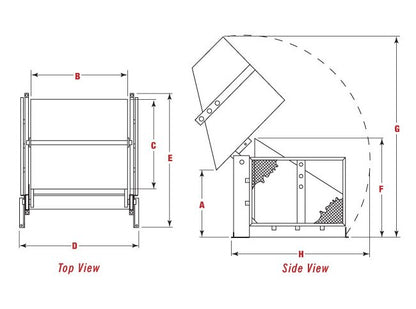

Specifications Approximate Weight
1095 lb
Specifications Arc Height G
149 in
Specifications Capacity
4000 lb
Specifications Carriage Height F
77 in
Specifications Carriage Length C
48 in
Specifications Carriage Width B
40 in
Specifications Dump Height A
60 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
2 hp
Specifications Overall Length E
70 in
Specifications Overall Width D
53 in
Specifications Series
DP
Specifications Speed
53 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
96 in
