40 Inch Electric Actuator with ISO 9001 Certification
40 Inch Electric Actuator with ISO 9001 Certification
SKU:KNI-5938b4
Ensure precise control with the 40 Inch Electric Actuator by Sure Flow. ISO 9001 certified for quality assurance.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
40 Inch Electric Actuator with ISO 9001 Certification
$799.99
Quantity: 1
Claim Your Seller Account
40 Inch Electric Actuator with ISO 9001 Certification
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial operations with the 40 Inch Size Electric Actuator by Sure Flow. This electric actuator features a rising stem design for precision control. Equipped with manual emergency operation, limit switches (open/closed), and torque switches, it offers optimal performance and safety measures. With dimensions meeting industry standards and a torque capacity of 3275 lbf/in, this actuator ensures reliable operation. Certified by the International Organization for Standardization (ISO) 9001:2008 (Intertek), it guarantees quality and compliance for institutional and government procurement needs.

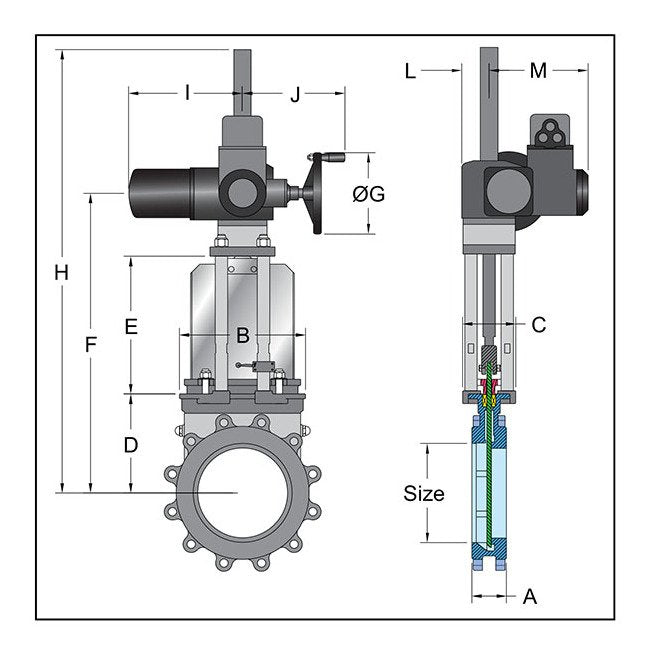

Product Specifications
Dimensions Diameter G
15 3/4 in
Dimensions Dimension A
4 21/64 in
Dimensions Dimension B
45 9/32 in
Dimensions Dimension C
12 39/64 in
Dimensions Dimension D
38 3/8 in
Dimensions Dimension E
47 15/64 in
Dimensions Dimension F
92 17/32 in
Dimensions Dimension H
135 5/64 in
Dimensions Dimension I
15 5/32 in
Dimensions Dimension J
13 1/16 in
Dimensions Dimension L
3 35/64 in
Dimensions Dimension M
11 7/32 in
Dimensions Size
40 in
Dimensions Torque
3275 lbf/in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
