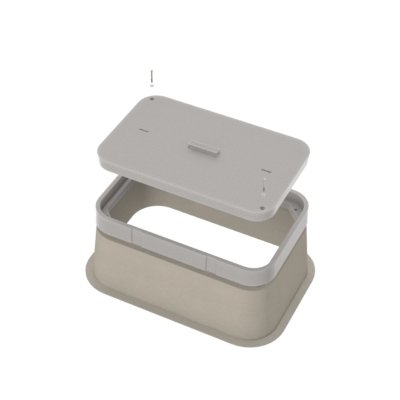

• 40-inch Fiberglass Concrete Assembly with 43" Inside Depth - Image 1

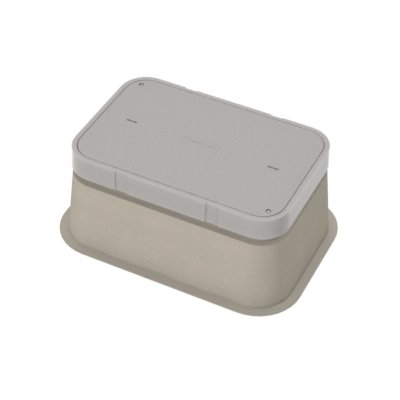

  • 40-inch Fiberglass Concrete Assembly with 43" Inside Depth - Image 2
1 2
Colonial Teltek →

40-inch Fiberglass Concrete Assembly with 43" Inside Depth

40-inch Fiberglass Concrete Assembly with 43" Inside Depth

HAN-8bbe1b

Premium 40" Fiberglass Concrete Assembly, 43" Inside Depth, ASTM Compliant

$799.99
$799.99
Sale

Initiate Order

40-inch Fiberglass Concrete Assembly with 43" Inside Depth

40-inch Fiberglass Concrete Assembly with 43" Inside Depth

$799.99

Quantity: 1

Claim Your Seller Account

40-inch Fiberglass Concrete Assembly with 43" Inside Depth

40-inch Fiberglass Concrete Assembly with 43" Inside Depth

$799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 40-inch Fiberglass Concrete Assembly with a generous 43-inch inside depth is a top-tier solution for utility infrastructure needs. Manufactured with high-quality Fiber Reinforced Polymers (FRP), this assembly offers exceptional compressive and flexural strengths, meeting ASTM standards. Featuring a tapered design and stainless steel bolts, it provides durability and reliability in various applications. With advanced composite materials, UV resistance, and non-conductive properties, this assembly ensures longevity and performance. The included nameplates cater to diverse utility types, and optional customizations enhance functionality, making it a versatile choice for both consumer and institutional buyers.

Product Specifications

Available Options
Penta Bolts, Telephone EMS, Power EMS, Splice Tray, Knockouts, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
46 in
Dimensional Attributes Inside Depth
43 in
Dimensional Attributes Inside Diameter
34 3/4 in | 48 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D-543 and ASTM D-570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticStreet LightingTrafficCATVCommunications
Specifications Assembly Weight
398.7 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
256.4 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
142.3 lb
Specifications Diameter
40 in
Specifications Fiber Reinforced Polymers Frp Compressive Strengt
19440 psi
Specifications Fiber Reinforced Polymers Frp Flexural Strength P
16,830 psi
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 -''T15/20K''
Specifications Loaded Pallet Weight
446 lb
Specifications Material
Fiberglass Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
1
Specifications Side
Tapered
Specifications Type
Fiberglass Concrete Assemblies
