40-Inch Kevlar® Municipal Style Pillow Seal Plug
40-Inch Kevlar® Municipal Style Pillow Seal Plug
SKU:AUT-6f1a55
Seal large pipes with ease using our 40-inch Kevlar® reinforced pillow seal plug for municipal and industrial applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
40-Inch Kevlar® Municipal Style Pillow Seal Plug
$299.99
Quantity: 1
Claim Your Seller Account
40-Inch Kevlar® Municipal Style Pillow Seal Plug
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 135-0 Series 40-inch Maximum Pipe Diameter Kevlar® Municipal Style Reinforced Pillow Shape Sealing Plug is an ideal solution for sealing large pipes with limited access. Crafted from Kevlar® reinforced NR-SBR rubber compound, this plug offers durability and flexibility. With a maximum inflation capacity of 14.5 psig and a deflated width of 36.8 inches, it provides a secure seal for pipes ranging from 24 to 40 inches in diameter. Equipped with a 2-inch by-pass, this plug ensures convenient testing and flow through operations. Designed for ease of insertion through manholes, this plug is a reliable choice for municipal and industrial applications.
Product Specifications
Features Features

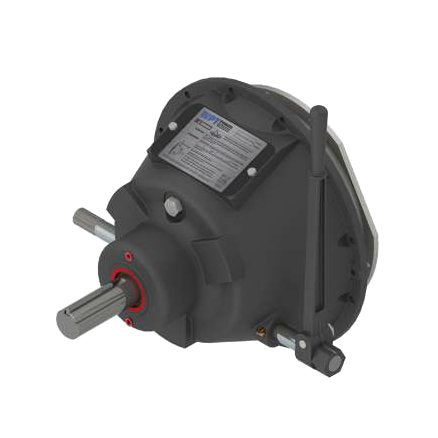

The troublesome pilot bearing has been eliminated to reduce failures and downtime.Torsionally-dampened automotive-style spring-loaded clutch.Quick and easy external adjustments.The angular contact throw out bearing reduces heat buildup during long idle times.No pilot bearing reduces failures and downtime
Note Note
Contact WPT® Applications Engineering for assistance on higher capacity or speed rating questions.
Performance Ratings Allowable Sideload At 10 Inch In Distance X
900 lb | 400 kg
Performance Ratings Allowable Sideload At 13 Inch In Distance X
600 lb | 300 kg
Performance Ratings Distance X
10 in | 13 in | 254 mm | 330 mm
Performance Ratings Maximum Input Torque
412 lb·ft | 560 N·m
Performance Ratings Maximum Speed
3000 rpm | 3500 rpm
Performance Ratings Speed
2000 rpm | 3000 rpm

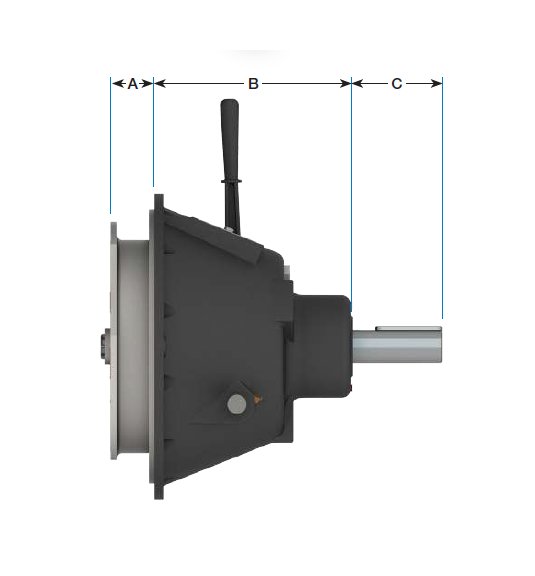

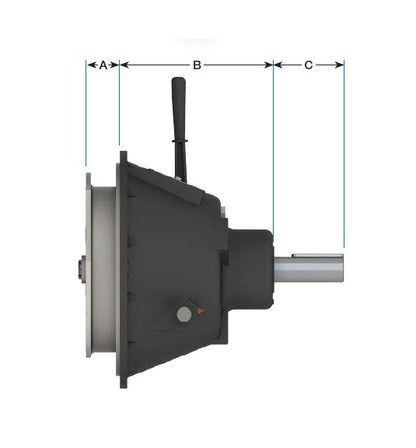

Specifications Dimension A
2.56 in | 65.1 mm
Specifications Dimension B
9-1/8 in | 231.8 mm
Specifications D Hole Bolt Circle Size
14.13 in | 358.8 mm
Specifications D Hole Diameter
3/8 in | 9.5 mm
Specifications D Hole Quantity
8
Specifications Output Shaft Diameter
1.750 in | 44.45 mm
Specifications Output Shaft Dimension C
2-15/16 in | 74.6 mm
Specifications Output Shaft Keyway Size
3/8 x 3/16 in
Specifications Sae Housings
3
Specifications Weight
149 lb | 68 kg
