40 Inch Maximum Pipe Diameter Kevlar Municipal Style Sealing Plug
40 Inch Maximum Pipe Diameter Kevlar Municipal Style Sealing Plug
SKU:PIL-528e67
Seal large pipes effectively with the Kevlar Municipal Style Sealing Plug. Durable, versatile, and compliant with industry standards.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
40 Inch Maximum Pipe Diameter Kevlar Municipal Style Sealing Plug
$239.99
Quantity: 1
Claim Your Seller Account
40 Inch Maximum Pipe Diameter Kevlar Municipal Style Sealing Plug
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 40 Inch Maximum Pipe Diameter Kevlar Municipal Style Sealing Plug from the 135-0 Series offers a robust solution for sealing large pipes with limited access. Constructed with Kevlar reinforcement and NR-SBR rubber compound, it provides durability and reliability. With a maximum inflation capacity of 14.5 psig, a deflated width of 36.4 inches, and a deflated length of 84 inches, this plug is versatile for various pipe sizes. Equipped with a standard 1/4" quick connect coupler, it ensures easy installation. Compliant with stringent industry standards, this sealing plug is ideal for both consumer and institutional use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features

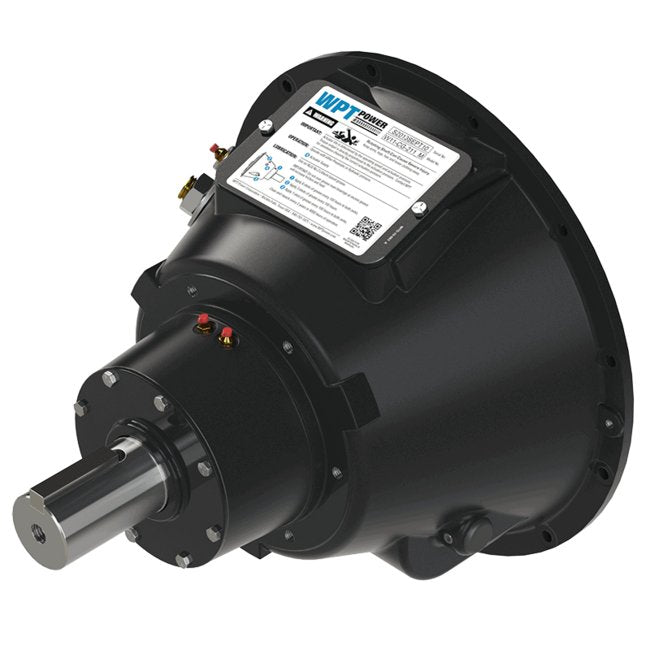

Dual spherical roller main bearing design, increases side load capacity.Self-Adjusting clutch.No direct loading to engine crankshaft which increases life of engine main bearings.Time savings for assembly since no pilot bearing alignment required.For in-line or side load applications.Hydraulic or pneumatic actuation.Radial input for actuation fluidSelf-adjusting hydraulic or pneumatic clutch packCompatible with the WPT® HPU hydraulic starting optionStandard, HD Molded, and HD Laminated friction options
Note Note
Support plate is required for sideload applications and recommended for inline applications.Contact WPT® Applications Engineering for assistance on higher capacity or speed rating questions.
Performance Ratings Allowable Sideload At 20 Inch In Distance X
3620 lb | 1640 kg
Performance Ratings Distance X
20 in | 508 mm
Performance Ratings Maximum Input Torque At 100 Pounds Per Squar
740 lb·ft | 1000 N·m
Performance Ratings Maximum Input Torque At 200 Pounds Per Squar
1860 lb·ft | 2525 N·m
Performance Ratings Maximum Speed
2300 rpm
Performance Ratings Speed
1800 rpm | 2100 rpm | 2300 rpm

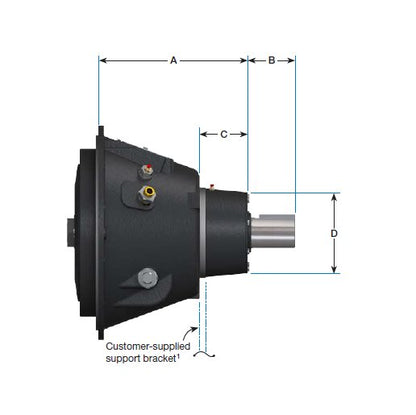

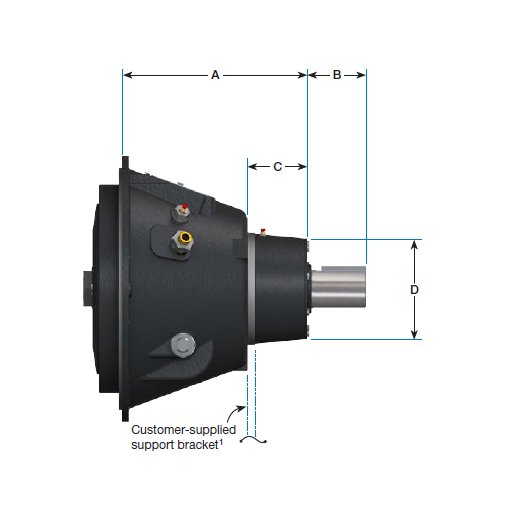

Specifications Dimension A
16-3/16 in | 411.5 mm
Specifications Dimension C
4 5/16 in | 110.2 mm
Specifications Dimension D
7-3/4 in | 196.9 mm
Specifications Number Of Teeth
59
Specifications Output Shaft Diameter
3.500 in | 88.9 mm
Specifications Output Shaft Dimension B
7-1/2 in | 191.8 mm
Specifications Output Shaft Keyway Size
7/8 x 7/16 in
Specifications Sae Housings
0 | 1
Specifications Weight
407 lb | 185 kg
