40 kVDC Shielded & Non-Shielded Lead Assembly - C Series LGH™ Compatible

40 kVDC Shielded & Non-Shielded Lead Assembly - C Series LGH™ Compatible

HIG-7ecbd1

High-quality 40 kVDC Shielded & Non-Shielded Lead Assembly for reliable high voltage applications. BeCu contact material with a gold finish, plastic insulator, and white silicone rubber wire insulation.

$99.99
$99.99
Sale

Initiate Order

40 kVDC Shielded & Non-Shielded Lead Assembly - C Series LGH™ Compatible

40 kVDC Shielded & Non-Shielded Lead Assembly - C Series LGH™ Compatible

$99.99

Quantity: 1

Claim Your Seller Account

40 kVDC Shielded & Non-Shielded Lead Assembly - C Series LGH™ Compatible

40 kVDC Shielded & Non-Shielded Lead Assembly - C Series LGH™ Compatible

$99.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

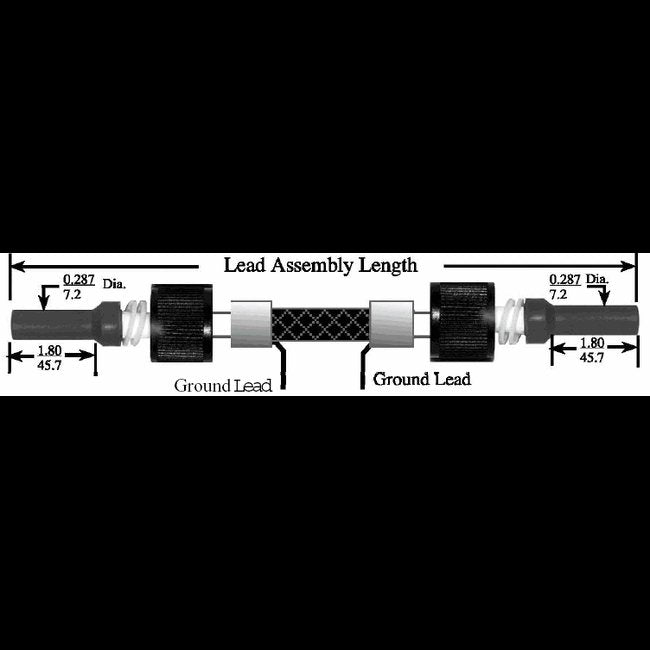

The 40 kVDC Shielded & Non-Shielded Lead Assembly is a high-quality double-ended plug cable assembly designed for reliable high voltage applications. With a voltage rating of 40 kVDC and an operating temperature range of -55 to 95 ºC, this assembly ensures optimal performance in demanding environments. It features BeCu contact material with a gold finish, providing excellent conductivity and durability. The insulator material is plastic, and the wire insulation is white silicone rubber, meeting industry standards for insulation and safety. Compatible with C 740 series and LGH 3I series receptacles, this assembly offers seamless integration and reliable connectivity.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
All C 740 series receptaclesAll LGH 3I series receptacles
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 740
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
50 kVDC
Specifications Voltage Rating
40 kVDC
Specifications Wire Insulation
White 0.300 Dia. silicone rubber, #AWG 16
