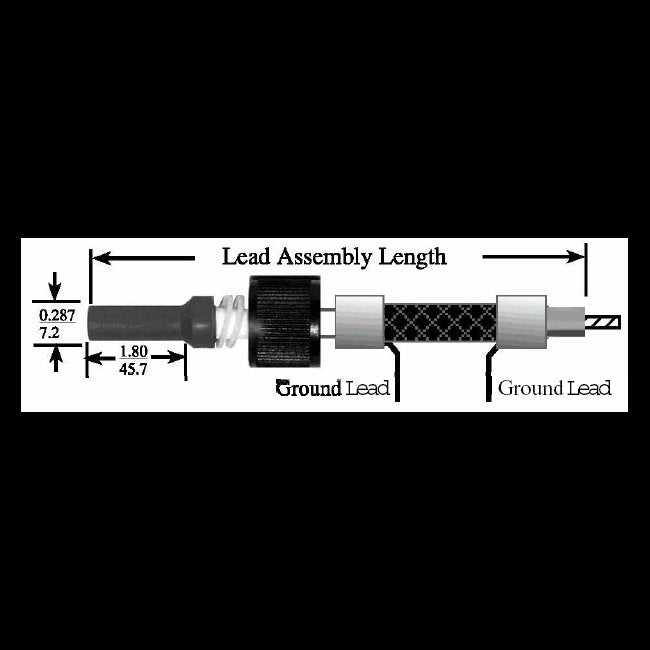

40 kVDC Shielded & Non-Shielded Lead Assembly With BeCu Contact Material
40 kVDC Shielded & Non-Shielded Lead Assembly With BeCu Contact Material
SKU:HIG-cde34a
High-performance 40 kVDC Shielded & Non-Shielded Lead Assembly for reliable high voltage transmission.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
40 kVDC Shielded & Non-Shielded Lead Assembly With BeCu Contact Material
$49.99
Quantity: 1
Claim Your Seller Account
40 kVDC Shielded & Non-Shielded Lead Assembly With BeCu Contact Material
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 40 kVDC Shielded & Non-Shielded Lead Assembly is a top-tier Single-Ended Plug Cable Assembly. It boasts a 50 kVDC test voltage and a current rating of 10 A, ensuring reliable performance under extreme conditions. With an altitude/reduced pressure rating of 70,000 ft. and an operating temperature range of -55 to 95 °C, this assembly is designed for durability in challenging environments. The BeCu contact material with gold finish enhances conductivity and longevity, making it ideal for applications requiring high voltage transmission. Compliant with RoHS regulations and featuring insulation with white 0.300 Dia. silicone rubber, this assembly meets the highest industry standards for quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
All C 740 series receptaclesAll LGH 3I series receptacles
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 740
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
50 kVDC
Specifications Voltage Rating
40 kVDC
Specifications Wire Insulation
White 0.300 Dia. silicone rubber, #AWG 16
