40 Series Locking PCB Support Post for .04-.062 Chassis Thickness
40 Series Locking PCB Support Post for .04-.062 Chassis Thickness
SKU:01C-6adfbd
Versatile 40 Series PCB support post for .04-.062 chassis thickness; sturdy Nylon 66 build, RoHS compliant, ASTM D 4066 PA111 standards, -40 to 185 F temp range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
40 Series Locking PCB Support Post for .04-.062 Chassis Thickness
$29.99
Quantity: 1
Claim Your Seller Account
40 Series Locking PCB Support Post for .04-.062 Chassis Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

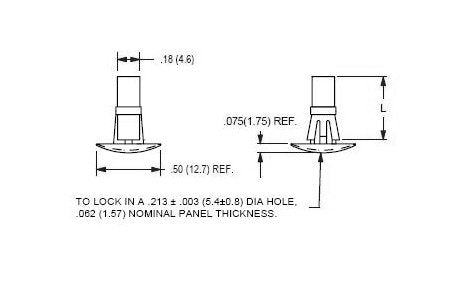

The 40 Series Locking PCB Support Post is a versatile solution designed to securely support circuit boards with a chassis thickness ranging from .04 to .062 inches. Constructed from durable Nylon 66 UL94V-2 material (UL94V-0 available), this reverse-locking board support ensures reliable attachment and stability. With a precisely engineered design featuring a .213-inch chassis hole and a color of Natural, this support post meets RoHS compliance and ASTM D 4066 PA111 standards, making it ideal for various electronic applications. It can withstand temperatures from -40 to 185 F (-40 to 85 C), providing exceptional performance in diverse environments.
Product Specifications
Specifications L 015
.256 (6.5) inches (mm)
