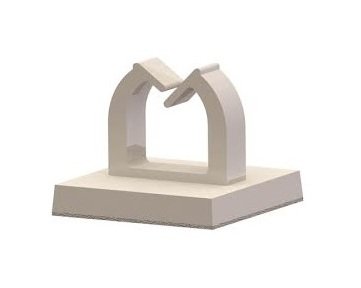

40 Series Micro Wire Saddle on Adhesive Base - Nylon 66, RoHS Compliant

Name: 40 Series Micro Wire Saddle on Adhesive Base - Nylon 66, RoHS Compliant
Brand: All Electronics Hardware
SKU: 03W-850312
Price: 49.99 USD
Availability: OutOfStock

SKU:03W-850312

Securely manage wires with the 40 Series Micro Wire Saddle on Adhesive Base. Durable Nylon 66 material, RoHS compliant, temperature range -40 to 185F.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 40 Series Micro Wire Saddle on Adhesive Base is a top load wire routing device designed for efficient cable management. Made from durable Nylon 66 material that meets UL94V-2 standards, these wire saddles ensure secure routing and organization of wires. With a temperature range of -40 to 185F (-40 to 85C), they offer reliable performance in diverse environments. This pack includes 1000 units in natural color for convenient and cost-effective wire management solutions.

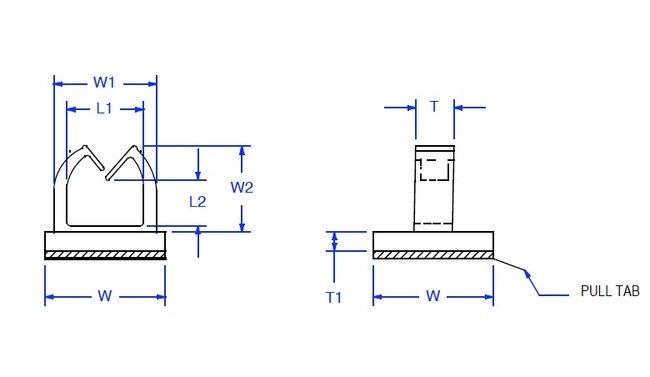

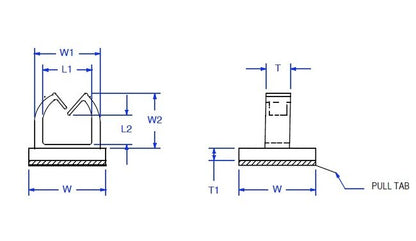

Product Specifications

Specifications L1 Ref

.36 (9.1) inches (mm)

Specifications L2 Ref

.33 (8.4) inches (mm)

Specifications T1 Ref

.08 (2) inches (mm)

Specifications T Ref

.16 (4) inches (mm)

Specifications W1 Ref

.47 (11.9) inches (mm)

Specifications W2 Ref

.51 (13) inches (mm)

Specifications W 015

.50 (12.7) inches (mm)

40 Series Micro Wire Saddle on Adhesive Base - Nylon 66, RoHS Compliant
