40 Series Micro Wire Saddle on Adhesive Base - Nylon 66, RoHS Compliant

Name: 40 Series Micro Wire Saddle on Adhesive Base - Nylon 66, RoHS Compliant
Brand: All Electronics Hardware
SKU: 03W-1ef0c6
Price: 29.99 USD
Availability: OutOfStock

SKU:03W-1ef0c6

Securely manage wires with the durable 40 Series Micro Wire Saddle on Adhesive Base. Nylon 66 material, RoHS compliant, and precise dimensions.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

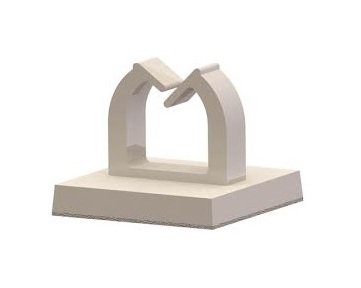

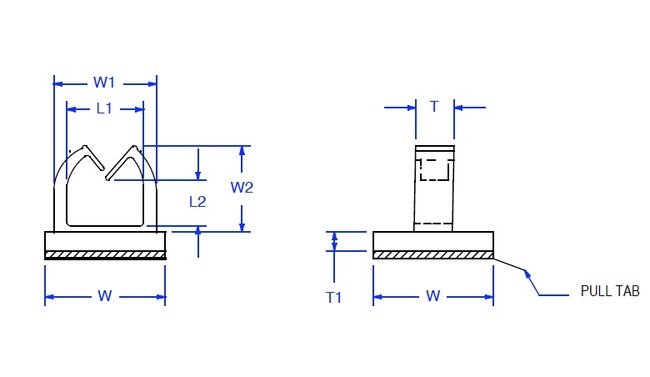

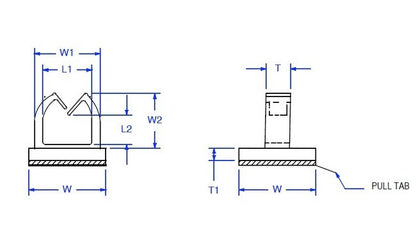

The 40 Series Micro Wire Saddle on Adhesive Base offers a reliable solution for wire routing needs. Constructed from Nylon 66 (UL94V-2) material, this top-load saddle provides secure wire management. With a color of Natural and a temperature range of -40 to 185F (-40 to 85C), it ensures durability and functionality in various environments. Measuring .28 inches (7mm) in W1, .24 inches (6mm) in W2, .19 inches (4.8mm) in L1, .13 inches (3.3mm) in L2, .37 inches (9.5mm) in W, .08 inches (2mm) in T, and .06 inches (1.6mm) in T1, this wire saddle meets precise specifications for efficient wire organization.

Product Specifications

Specifications L1 Ref

.19 (4.8) inches (mm)

Specifications L2 Ref

.13 (3.3) inches (mm)

Specifications T1 Ref

.06 (1.6) inches (mm)

Specifications T Ref

.08 (2) inches (mm)

Specifications W1 Ref

.28 (7) inches (mm)

Specifications W2 Ref

.24 (6) inches (mm)

Specifications W 015

.37 (9.5) inches (mm)
