40 Series Micro Wire Saddle on Adhesive Base - Wire Routing Device

Name: 40 Series Micro Wire Saddle on Adhesive Base - Wire Routing Device
Brand: All Electronics Hardware
SKU: 03W-28b206
Price: 29.99 USD
Availability: OutOfStock

SKU:03W-28b206

Secure and organize wires with the 40 Series Micro Wire Saddle on Adhesive Base. RoHS compliant Nylon 66 material, -40 to 185F temp range.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

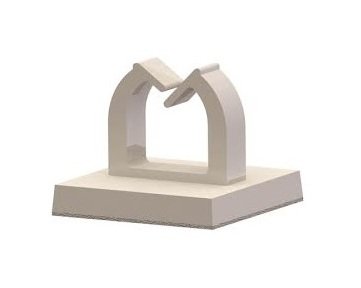

The 40 Series Micro Wire Saddle on Adhesive Base offers a top-loading design in natural color, ideal for organizing and securing wires in various applications. Made of RoHS compliant Nylon 66 material, it ensures durability and safety with a temperature range of -40 to 185F. With precise dimensions meeting industry standards, including W1: .47 inches, W2: .44 inches, L1: .36 inches, and more, this wire saddle provides reliable wire routing solutions for institutional and government procurement needs.

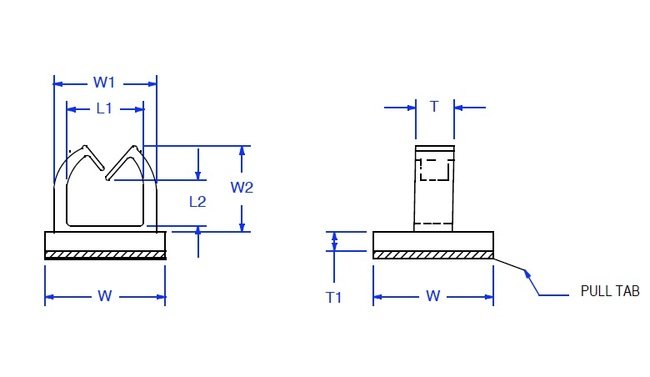

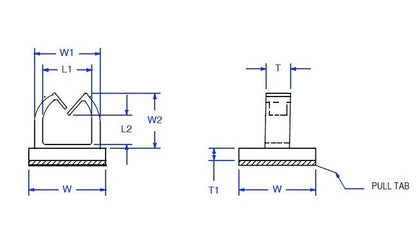

Product Specifications

Specifications L1 Ref

.36 (9.1) inches (mm)

Specifications L2 Ref

.23 (5.8) inches (mm)

Specifications T1 Ref

.08 (2) inches (mm)

Specifications T Ref

.16 (4) inches (mm)

Specifications W1 Ref

.47 (11.9) inches (mm)

Specifications W2 Ref

.44 (11.2) inches (mm)

Specifications W 015

.50 (12.7) inches (mm)

40 Series Micro Wire Saddle on Adhesive Base - Wire Routing Device
