40 Series Micro Wire Saddle on Adhesive Base - Wire Routing Device

Name: 40 Series Micro Wire Saddle on Adhesive Base - Wire Routing Device
Brand: All Electronics Hardware
SKU: 03W-595d03
Price: 49.99 USD
Availability: OutOfStock

SKU:03W-595d03

Securely organize wires with the 40 Series Micro Wire Saddle on Adhesive Base. RoHS compliant and temperature-resistant.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

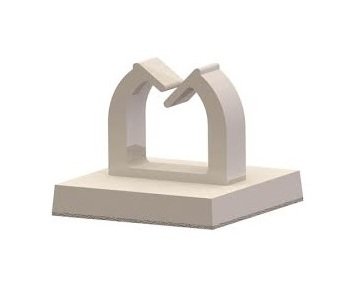

The 40 Series Micro Wire Saddle on Adhesive Base is a top-loading solution for efficient wire routing. Crafted from durable Nylon 66 material (UL94V-2) and RoHS compliant, this wire saddle offers a secure hold for wires while ensuring temperature resistance from -40 to 185F (-40 to 85C). With precise dimensions and a pack of 1000 pieces, this product is ideal for organizing and securing wires in various applications, meeting the strictest quality standards of wire management.

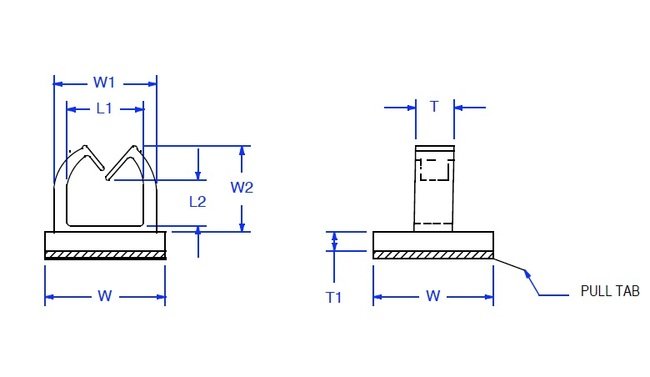

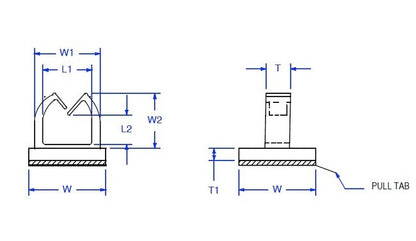

Product Specifications

Specifications L1 Ref

.19 (4.8) inches (mm)

Specifications L2 Ref

.05 (1.3) inches (mm)

Specifications T1 Ref

.06 (1.6) inches (mm)

Specifications T Ref

.08 (2) inches (mm)

Specifications W1 Ref

.28 (7) inches (mm)

Specifications W2 Ref

.16 (4) inches (mm)

Specifications W 015

.37 (9.5) inches (mm)

40 Series Micro Wire Saddle on Adhesive Base - Wire Routing Device
