40 Series PCB Support Post with .213 Chassis Hole
40 Series PCB Support Post with .213 Chassis Hole
SKU:01C-f83edc
Versatile 40 Series PCB Support Post for .04-.062 inch Chassis Thickness - RoHS Compliant, Temperature Range -40 to 185 F
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
40 Series PCB Support Post with .213 Chassis Hole
$32.99
Quantity: 1
Claim Your Seller Account
40 Series PCB Support Post with .213 Chassis Hole
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

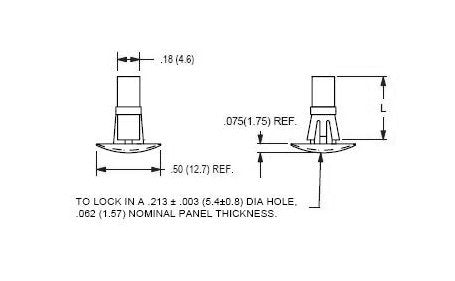

The 40 Series Support Post is a reliable reverse locking board support designed for PCBs with thickness ranging from .04 to .062 inches. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support post features a precise L +/- .015 measurement of .816 inches (20.7 mm). It comes in a natural color and is RoHS compliant, ensuring environmental safety. With a temperature range of -40 to 185 F (-40 to 85 C), this support post is a durable solution for circuit board supports.
Product Specifications
Specifications L 015
.816 (20.7) inches (mm)
