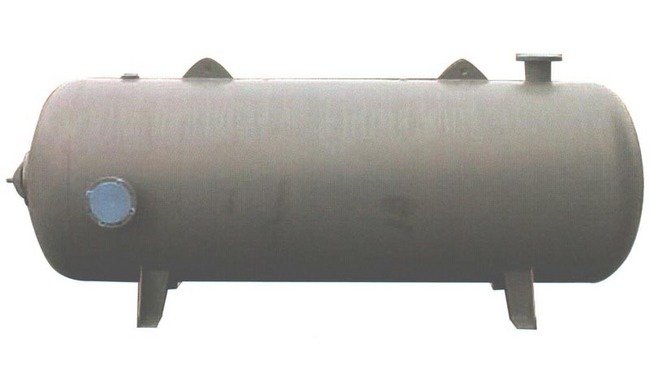

400-Gallon Horizontal Air Receiver Tank, 165 PSI MAWP

Name: 400-Gallon Horizontal Air Receiver Tank, 165 PSI MAWP
Brand: Compressed Air Systems, Inc.
SKU: REC-bedd99
Price: 899.99 USD
Availability: OutOfStock

SKU:REC-bedd99

Reliable 400-gal horizontal air receiver tank with 165 PSI MAWP for industrial use. Durable, space-saving design.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 400-Gallon Horizontal Air Receiver Tank with a 165 PSI Maximum Allowable Working Pressure (MAWP) is an essential component for air compression systems in industrial and institutional settings. With a nominal capacity of 400 gallons, this tank offers ample air storage to ensure consistent and reliable air supply. Its sturdy construction and compact dimensions make it ideal for space-constrained environments. The tank is designed for easy installation and maintenance, providing a cost-effective solution for managing compressed air needs efficiently.

Product Specifications

Financing Approve Payments

Finance with Approve Payments

Specifications Cross Reference

A10346

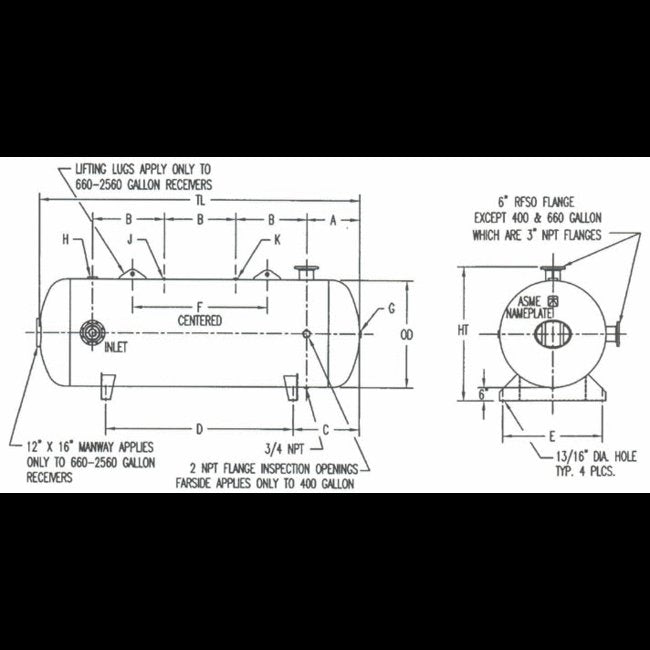

Specifications Dimension A

15.00 inches

Specifications Dimension B

21.00 inches

Specifications Dimension C

20.50 inches

Specifications Dimension D

52.00 inches

Specifications Dimension E

33.00 inches

Specifications Ht

42.00 inches

Specifications Mawp

165 psi

Specifications Nominal Capacity

400 gal | 53.48 ftÂ³

Specifications Npt Opening G

2 inches

Specifications Npt Opening H

2 1/2 inches

Specifications Npt Opening J

1/4 inches

Specifications Npt Opening K

1/2 inches

Specifications Od

36.00 inches

Specifications Tl

93.00 inches

Specifications Tw

750
