400 Gallon Vertical Air Receiver, ASME Certified
400 Gallon Vertical Air Receiver, ASME Certified
SKU:VER-75e857
Reliable 400 Gallon Vertical Air Receiver, ASME Certified, ideal for industrial use
Regular price
$2,199.99
Regular price
Sale price
$2,199.99
Unit price
per
Initiate Order
400 Gallon Vertical Air Receiver, ASME Certified
$2,199.99
Quantity: 1
Claim Your Seller Account
400 Gallon Vertical Air Receiver, ASME Certified
$2,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 400 Gallon Vertical Air Receiver is meticulously crafted to adhere to ASME standards, ensuring optimal performance and durability for industrial applications. With a design pressure of 165 psi and a standard design temperature of 450 ºF, this vertical tank offers a spacious capacity of 400 gallons with a 36-inch diameter. Featuring NPT threaded openings and a grey oxide primer finish, it meets the stringent requirements of high-pressure environments, making it a reliable choice for government and institutional buyers seeking top-notch air storage solutions.

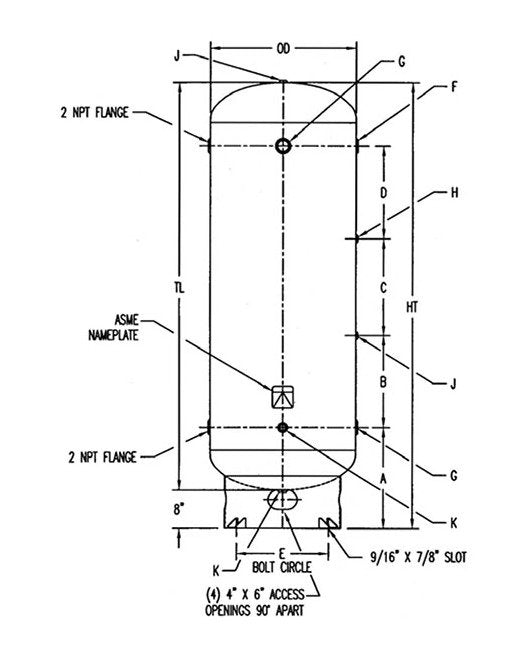

Product Specifications
Dimensions Dimension A
21 in
Dimensions Dimension B
22 in
Dimensions Dimension C
21 in
Dimensions Dimension D
15 in
Dimensions Dimension E
8 in
Dimensions Dimension F
32 in
Note 0
Call for pricing on higher pressure. Larger receivers available to 3800 gallons.400RMT and 500RMT are 165 psi pressure rated
Openings Opening G
3 in
Openings Opening H
1/4 in
Openings Opening J
1/2 in
Openings Opening K
1 in
Openings Opening L
1 in
Openings Opening M
1/2 in
Openings Opening N
2 in
Specifications Design Pressure
165 psi
Specifications Diameter
36 in
Specifications Height
104 in
Specifications Industry Standards
ASME
Specifications Length
96 in
Specifications Standard Design Temperature
450 ºF
Specifications Volume
400 gal
