The 4000/5000 Series Bronze Pilot-Piston Solenoid Valves are precision-engineered for medium-pressure applications, with a pressure range from 5 to 500 psig. These full-ported valves are pilot-operated, ensuring reliable performance with a minimum pressure differential of 5 psig. Suitable for a variety of fluids including gas, liquid, steam, and cryogenics, these valves come in different pipe sizes and offer a Cv range from 1.4 to 71. With a wide temperature range from -423°F to +500°F, optional seat materials, and various coil housing options, these valves provide versatility and durability for industrial settings.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1 1/2 in
Specifications Connection Type
Female NPT
Specifications Cv
21.0

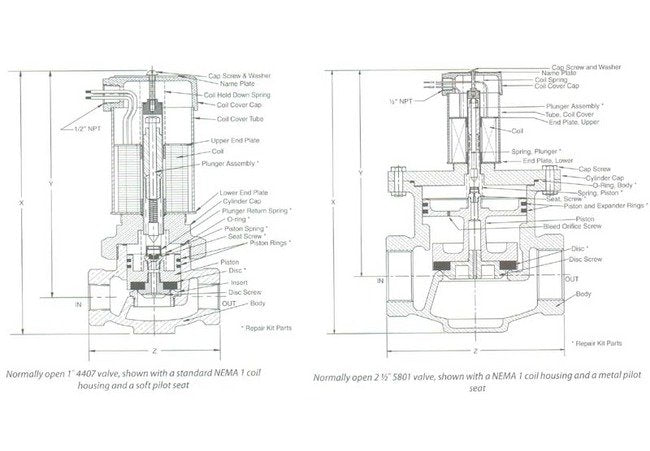

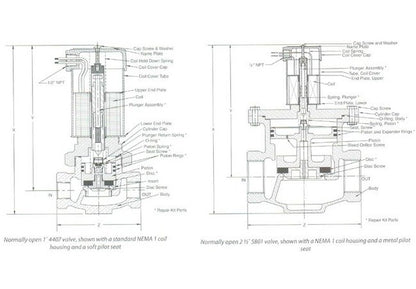

Specifications Dim X
11 in
Specifications Dim Y
9 3/16 in
Specifications Dim Z
5 1/16 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
1 1/2 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Open
Specifications Seat Seal Material
Viton®
Specifications Series
4000
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
