4000/5000 Series Cryogenic Solenoid Valves
4000/5000 Series Cryogenic Solenoid Valves
SKU:ATK-d4016c
High-performance cryogenic solenoid valves for medium pressure applications with bronze body and Teflon® seals. Versatile, reliable, and durable.
Regular price
$169.99
Regular price
Sale price
$169.99
Unit price
per
Initiate Order
4000/5000 Series Cryogenic Solenoid Valves
$169.99
Quantity: 1
Claim Your Seller Account
4000/5000 Series Cryogenic Solenoid Valves
$169.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4000/5000 Series Cryogenic Solenoid Valves are meticulously engineered for medium pressure applications, featuring a bronze body with Teflon® seat and seal materials. With an operating pressure range of 5 to 500 psig and a temperature range from -423 to 500°F, these valves are designed for versatility. Suitable for gases, liquids, steam, and cryogenics, they offer Cv from 1.40, NPT connections, and normally open positioning. The Class H coil insulation ensures reliable performance in extreme temperatures, while the variety of optional seat materials caters to specific fluid types and pressures.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1/4 in
Specifications Connection Type
Female NPT
Specifications Cv
1.40

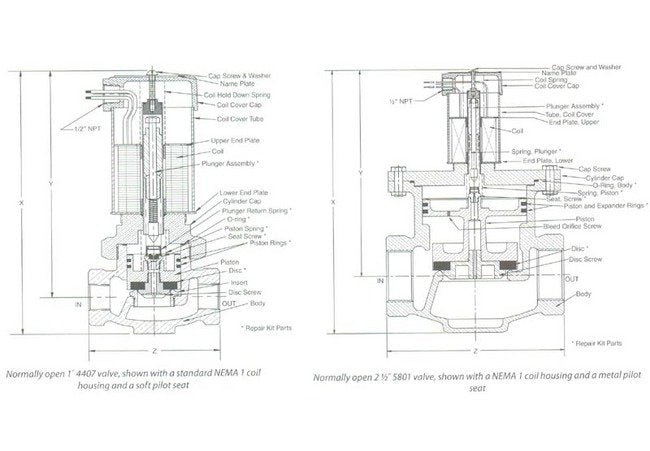

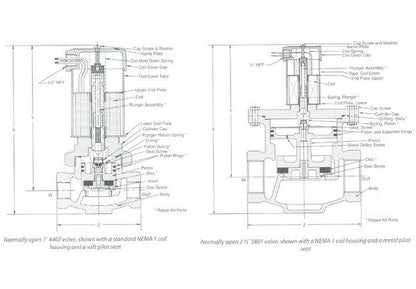

Specifications Dim X
8 1/8 in
Specifications Dim Y
7 1/4 in
Specifications Dim Z
2.6875 in
Specifications Fluid Media Type
Cryogenic
Specifications Main Seat Orifice
.375 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Open
Specifications Seat Seal Material
Teflon®
Specifications Series
4000
Specifications Temperature Range
-423 to 500 ºF | -253 to 260 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
