4000 lb Capacity Mechanical VRC Lift - 48x48 in Platform
4000 lb Capacity Mechanical VRC Lift - 48x48 in Platform
SKU:MEZ-f2ff32
Efficient 4000 lb Mechanical VRC Lift - ASME Certified, Safe & Reliable
Regular price
$12,500.00
Regular price
Sale price
$12,500.00
Unit price
per
Initiate Order
4000 lb Capacity Mechanical VRC Lift - 48x48 in Platform
$12,500.00
Quantity: 1
Claim Your Seller Account
4000 lb Capacity Mechanical VRC Lift - 48x48 in Platform
$12,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

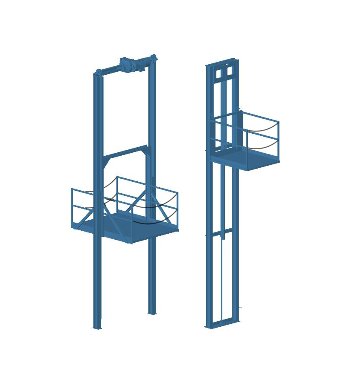

The 4000 lb Mechanical Vertical Reciprocating Conveyor (VRC) is engineered for safe and efficient material transport between multi-level floors. Featuring a Cantilever Mechanical design, this lift offers a minimum 48x48 in platform size, 30 ft/min speed, and 7.5 hp motor power. With ASME B20.1 and ISO 9001:2015 certifications, along with UL listing, it ensures compliance with industry standards. Equipped with double chains, integral holding brakes, and mechanical locking brakes, it prioritizes safety and reliability for institutional buyers. Explore our range of accessories like Landing-Lock™, Gates & Enclosures for enhanced functionality.
Product Specifications
Accessories Accessories

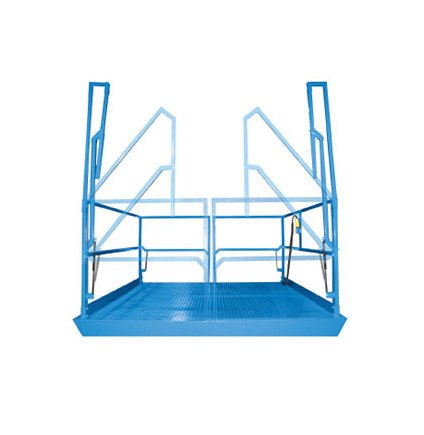

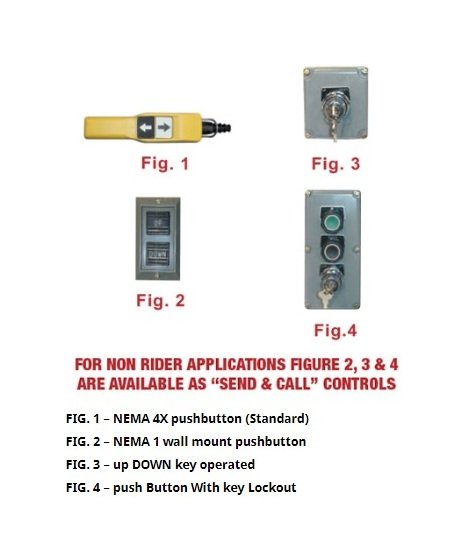

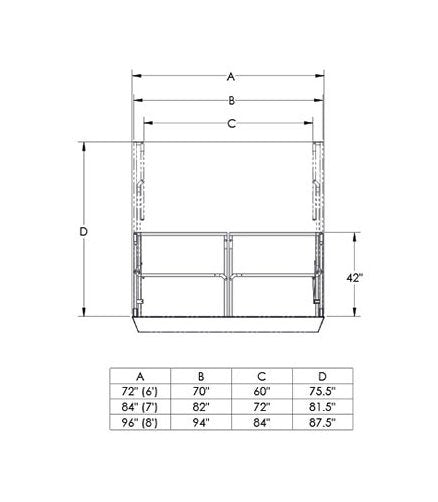

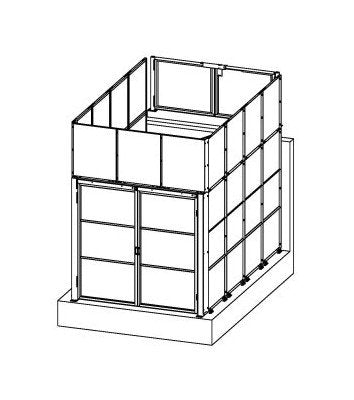

Landing-Lockâ¢, Gates & Enclosures, Controls, Receptacle Charts and Bi-Parting GatesLanding Lockâ¢: Advance lifts has recently developed a Landing Lock⢠for our BFL mezzanine access scissor lift systems. We have a patent pending on the design and the name is trade mark protected. The design consists of two (2) locking pins mounted on the lift platform that are automatically engaged into two (2) supports that are integrated into the lift enclosure system to firmly hold the platform at the upper elevation. Sway and deflection are eliminated during loading/unloading operations. This device can be used to secure a platform at any grade level such as mezzanine floors, building floors or machine interfaces where loads are transferred from one surface to another surface.Gates and Enclosures: We are now manufacturing our own gates and enclosures. By moving the production of the gates and enclosures in house we have shortened our drawing and delivery times. Besides the quicker delivery times, this has allowed us to incorporate some design changes that will improve the fit and finish and make installation easier. The most noticeable change will be the incorporation of leveling feet. Besides making it very easy to deal with un-level floors, they also make it easier to adjust for small surprises like mezzanine lag bolts.All enclosures are custom designs. The main components are universal, but each local authority may tweak the codes to suit their tastes, so it is our job to provide a wide array of options to make it easier to comply with local needs.Our engineers and service people listen carefully to installers to be sure we adopt all the labor saving ideas that we hear about to make installations as quick and trouble free as possible.Features and BenefitsOur designs comply with all applicable ASME & ANSI standards Panel inserts are flattened expanded metal for excellent visibility Panel perimeters are angle iron with external access to mounting slots (Advance supplies 1/4" flanged nuts and flanged bolts for 5/16" slots) Two adjustable feet for each bottom panel for easy leveling Electro mechanical gate interlocks are NEMA 4 rated All metal components are fully primed & baked enamel finishes.
Additional Information Additional Information
For small package liftsFor Rider Lift applications
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits
All of our controllers are assembled in our UL listed panel shopThese mechanical vertical lifts conform ASME B20.1These units also conform to VRC Guidelines - as referenced in ASME B20.1Motors are equipped with integral holding brakesAll vertical conveyor lifts have double chainsThe carriages also have mechanical locking brakes in case of chain failure.
Specifications Capacity
4000 lb
Specifications Carriage Height
84 in
Specifications Electrical Warranty
1 Years
Specifications Industry Standards
American Society of Mechanical Engineers (ASME B20.1) | International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Lowered Height
2.25 in
Specifications Maximum Platform Size
96 x 96 in
Specifications Maximum Travel Size
100 ft
Specifications Minimum Overall Platform Depth
64 in
Specifications Minimum Overall Platform Width
48 in
Specifications Minimum Platform Size
48 x 48 in
Specifications Motor Power
7.5 hp
Specifications Overall Travel Height
112+ in
Specifications Speed
30 ft/min
Specifications Structural Warranty
5 Years
Specifications Type
Cantilever Mechanical
