400A Copper Conductor Bars with Splice

Name: 400A Copper Conductor Bars with Splice
Brand: Clutch Engineering
SKU: CRA-739d26
Price: 499.99 USD
Availability: OutOfStock

SKU:CRA-739d26

Upgrade to 400A Copper Conductor Bars w/ Splice for reliable power transmission & durability. Ideal for industrial crane control systems.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your crane control system with our 400A Copper Conductor Bars featuring an integrated splice for seamless power transmission. Made of high-quality copper, these bars ensure reliable current flow with an amperage rating of 400A. The UV-stable black PVC cover provides durability and protection, meeting industry standards for maximum system voltage, resistance, and impedance. With a 4.5m length and standard support pitch, these bars are ideal for efficient electrification systems in industrial settings.

Product Specifications

Cover Specifications Cover Material

PVC

Cover Specifications Dielectric Strength

180 kv/cm

Cover Specifications Flame Test

Self Extinguishing

Cover Specifications Oxygen Index

54%

Cover Specifications Specific Density

1.5 g/cmÂ³

Cover Specifications Surface Resistivity

1011 Î©

Cover Specifications Vicat Softening Temperature

160 ÂºF | 71.1 ÂºC

Cover Specifications Volume Resistivity

>1015 Î©/cm

Specifications Amperage Rating

400 A

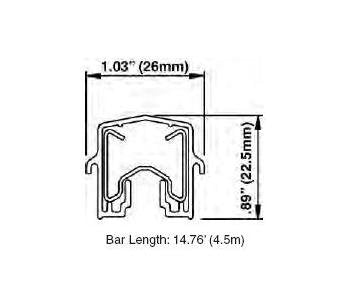

Specifications Bar Length

4.5 m

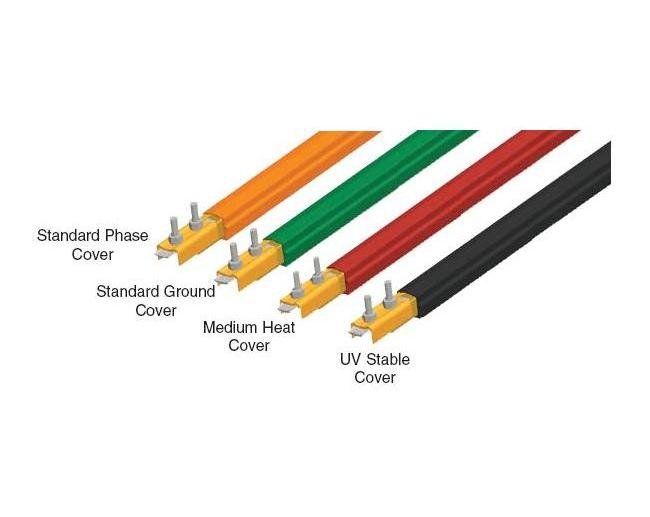

Specifications Cover Type

UV Stable (Black)

Specifications Cross Sectional Area

93 mmÂ²

Specifications Expansion Sections

150 m

Specifications Impedance Z For Ac At 20 C

0.000221 Î©/m

Specifications Material

Copper

Specifications Maximum Allowable Ambient Temperature

25 ÂºC

Specifications Maximum System Voltage Ac Or Dc Per Ul Listing

600 V

Specifications Minimum Bending Radius

1.5 m

Specifications Minimum Pitch Centers Standard

43 mm

Specifications Nominal Current

400 A

Specifications Resistance R For Dc At 20 C

0.000184 Î©/m

Specifications Support Pitch Lateral

1125 mm

Specifications Support Pitch Standard

1500 mm

Specifications Weight

10 lb | 4.5 kg
