41 Series Nylon PCB Supports - .156 Board Hole x .250 Chassis Hole
41 Series Nylon PCB Supports - .156 Board Hole x .250 Chassis Hole
SKU:01C-093470
Secure and reliable Nylon PCB Supports for .062 PCB Thickness in various board mounting applications. Pack of 1000 in natural color.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
41 Series Nylon PCB Supports - .156 Board Hole x .250 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
41 Series Nylon PCB Supports - .156 Board Hole x .250 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

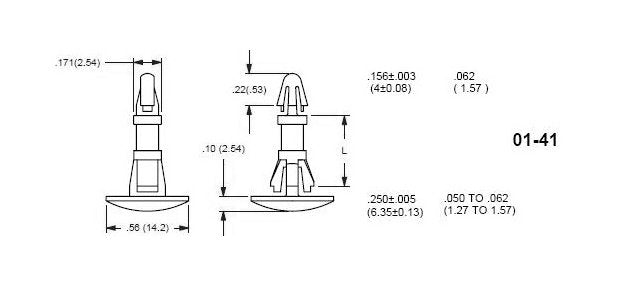

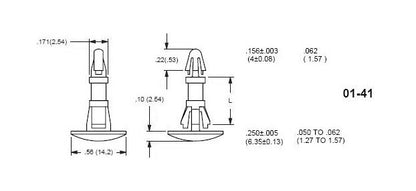

The 41 Series Nylon PCB Supports are designed for secure and reliable board mounting applications. These reverse locking board supports feature a .062 PCB Thickness for precise fitting with a .05 to .062 Chassis Thickness. The supports include a .156 PCB Hole and a .250 Chassis Hole, ensuring compatibility with various board and chassis configurations. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports are RoHS Compliant and can withstand temperatures ranging from -40 to 185 F (-40 to 85 C). Each pack contains 1000 supports in a natural color for efficient installation and use.
Product Specifications
Specifications L 015
.605 (16.5) inches (mm)
