42 Series Locking PCB Support
42 Series Locking PCB Support
SKU:01C-a690cf
Secure circuit boards with precision using the 42 Series Locking PCB Support. RoHS compliant, durable Nylon 66 construction for reliability. Packaged with 1000 supports per bag.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
42 Series Locking PCB Support
$59.99
Quantity: 1
Claim Your Seller Account
42 Series Locking PCB Support
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

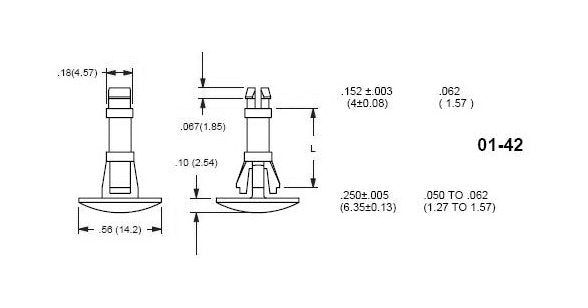

The 42 Series Locking PCB Support is a reliable solution for securing circuit boards with precision. Designed for .062 PCB Thickness and .05 to .062 Chassis Thickness, this support features a .156 PCB Hole coupled with a .250 Chassis Hole. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available), it offers durability and safety. This product is RoHS compliant and operates in a temperature range of -40 to 185 F (-40 to 85 C), making it ideal for various environments. Each pack contains 1000 supports, ensuring ample supply for your needs.
Product Specifications
Specifications L 015
1.06 (26.92) inches (mm)
