43 Series Support Post for .05-.062 Chassis Thickness
43 Series Support Post for .05-.062 Chassis Thickness
SKU:01C-adf6e6
Premium 43 Series Support Post for .05-.062 Chassis Thickness. Nylon 66 UL94V-2 material. RoHS compliant. Pack of 1000 pieces.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
43 Series Support Post for .05-.062 Chassis Thickness
$59.99
Quantity: 1
Claim Your Seller Account
43 Series Support Post for .05-.062 Chassis Thickness
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

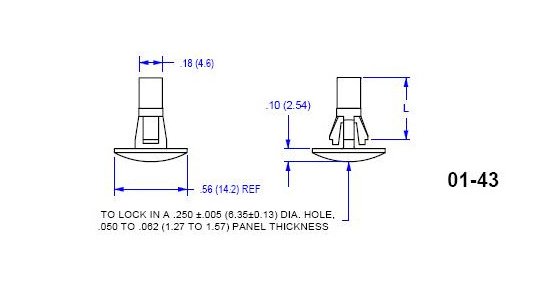

The 43 Series Support Post is a top-quality reverse locking board support (PCB Support) designed for use with chassis thickness ranging from .05 to .062 inches. Manufactured with Nylon 66 UL94V-2 material (UL94V-0 available upon request), this support post features a .250 chassis hole, ensuring secure installation and stability for circuit boards. Temperature-resistant from -40 to 185 F (-40 to 85 C), this product comes in a natural color and is RoHS compliant for environmental safety. Each pack contains 1000 pieces for bulk applications, offering reliability and efficiency for various circuit board support needs.
Product Specifications
Specifications L 015
.492 (12.5) inches (mm)
