43 Series Twist Lock Standoff (.20-.30 Bundle Range)

Name: 43 Series Twist Lock Standoff (.20-.30 Bundle Range)
Brand: All Electronics Hardware
SKU: 03W-52bbb7
Price: 14.99 USD
Availability: OutOfStock

SKU:03W-52bbb7

Securely route wire bundles with the 43 Series Twist Lock Standoff. Features .20-.30 Bundle Range, Nylon 66. RoHS compliant.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 43 Series Twist Lock Standoff is a versatile wire routing solution designed to securely route wire bundles with ease. Featuring a .20-.30 Bundle Range, this standoff ensures a snug fit for various wire sizes. Crafted from Nylon 66 with a UL94V-2 rating, it offers exceptional durability and fire resistance. The Arrowhead snap locks effortlessly into boards, lifting wires off the board to prevent interference with panels, moving parts, or heat-sensitive components. Ideal for both consumer and institutional applications, this standoff is RoHS compliant for environmental safety.

Product Specifications

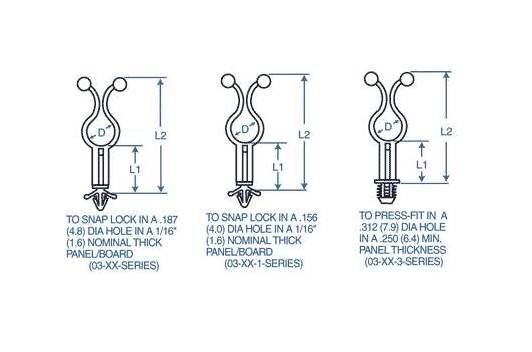

Specifications Bundle Diameter Range

.200 - .300 (5.1 - 7.6) inches (mm)

Specifications Dim L1

2.12 (53.8) inches (mm)

Specifications Dim L2

2.91 (73.9) inches (mm)

Specifications Hole Size

.156 (4.0) inches (mm)

Specifications Material Code

UL94V-0

Specifications Package Size

500 / bag

43 Series Twist Lock Standoff (.20-.30 Bundle Range)
