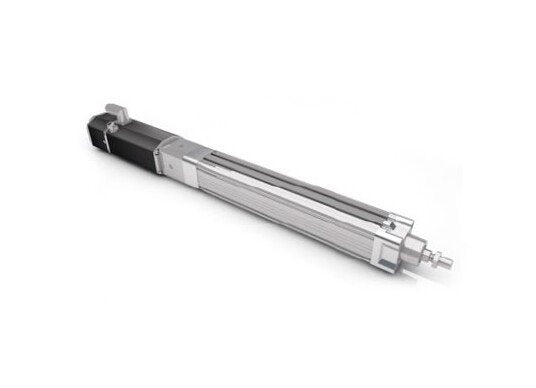

440 Newton Electric Cylinder with Ball Screw Spindle

440 Newton Electric Cylinder with Ball Screw Spindle

SKU:ELE-45a508

High-performance 440 N Electric Cylinder with Ball Screw Spindle for precise and efficient industrial positioning.

Regular price $699.99
Regular price Sale price $699.99
Sale

Initiate Order

440 Newton Electric Cylinder with Ball Screw Spindle

440 Newton Electric Cylinder with Ball Screw Spindle

$699.99

Quantity: 1

Claim Your Seller Account

440 Newton Electric Cylinder with Ball Screw Spindle

440 Newton Electric Cylinder with Ball Screw Spindle

$699.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 440 Newton Constant Force Electric Cylinder with Ball Screw Spindle is a versatile solution ideal for precise positioning in industrial applications. With a constant force of 440 N, peak force of 1170 N, and maximum traverse speed of 300 mm/s, this electric cylinder offers high efficiency and low noise operation. It features brushless DC servomotors, twist-protected thrust rod, and feedback integrated with 4096 cycles/rev. This compact and space-saving cylinder supports easy configuration of up to 14 positions and various BUS interfaces, making it a reliable choice for applications requiring maintenance-free, self-locking, high force, and dynamic performance.

Product Specifications

Additional Information Additional Information
Compact and space savingEasy configuration of max. 14 positions (PI motor)Several BUS interfaces availablePLG 52 on request
Features Features
IO modeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeHigh efficiencyLow noiseSelf-locking ratios availableHigh forceHigh dynamicDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableVibration resistance
Note Note
Not applicable for motions on mechanical stop.
Technical Specs Brands
Dunkermotoren
Technical Specs Constant Force
440 N
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Acceleration
6 mm/s²
Technical Specs Maximum Traverse Speed
300 mm/s
Technical Specs Motor Type
BG 65Sx50
Technical Specs Nominal Current
7 A
Technical Specs Nominal Direct Current Dc Voltage
40 to 48 V
Technical Specs Peak Current 2 Second S
20 A
Technical Specs Peak Force
1170 N
Technical Specs Protection Class
Ingress Protection (IP54S)
Technical Specs Repeatability
0.01 mm
Technical Specs Spindle Pitch
5 mm
Technical Specs Spindle Version
BS (Ball Screw)
Technical Specs Stroke Length
100 mm | 200 mm | 300 mm | 400 mm | 500 mm | 600 mm
