45 Degree Male Elbow, 1/4in Tube OD & Thread Size
45 Degree Male Elbow, 1/4in Tube OD & Thread Size
SKU:SHM-c89eab
Enhance connections with our precision-crafted 45 Degree Male Elbow, ensuring safety and productivity in high-pressure environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
45 Degree Male Elbow, 1/4in Tube OD & Thread Size
$29.99
Quantity: 1
Claim Your Seller Account
45 Degree Male Elbow, 1/4in Tube OD & Thread Size
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

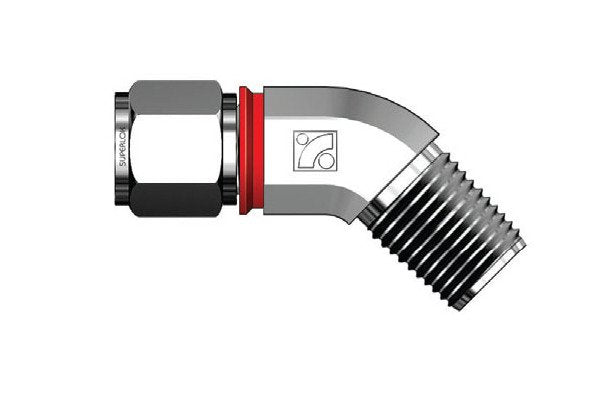

The SHMEI Series 45 Degree Male Elbow facilitates seamless connections between fractional tubes and female NPT threads. Constructed with high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this elbow ensures durability and reliability in various applications. Its industry-leading i-Fitting® design enhances installer safety, productivity, and cost-effectiveness. With dimensions crafted for precision and a built-in gap gauge for perfect compression, this male elbow is a game-changer in valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

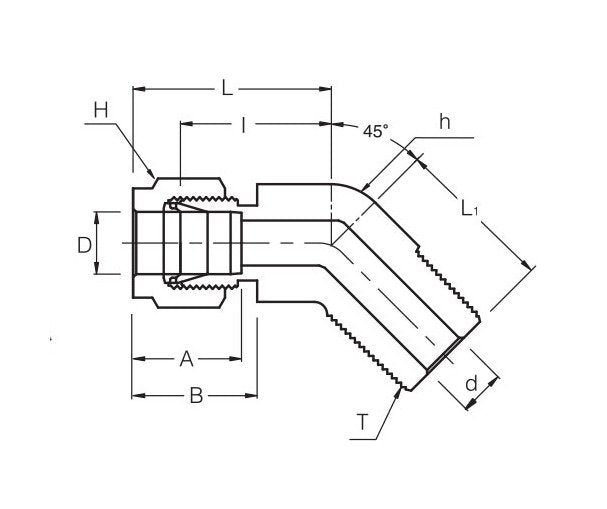

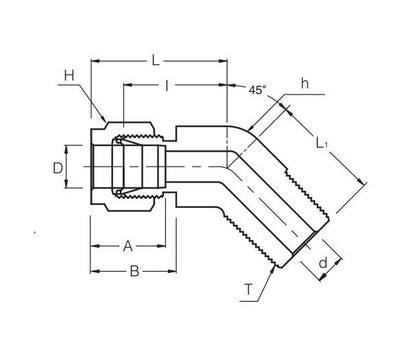

Technical Specs Angle
45 º
Technical Specs Connection Type
Male
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
17.27 mm
Technical Specs Dimension L
24.63 mm
Technical Specs Dimension L1
21.08 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
