45 Degree Male Elbow Connector, 1/2 in Tube OD x 1/2 in NPT Thread
45 Degree Male Elbow Connector, 1/2 in Tube OD x 1/2 in NPT Thread
SKU:SHM-e80a70
High-quality 45° male elbow connector for precise tube-to-NPT connections. Patented i-Fitting® design ensures safety & productivity.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
45 Degree Male Elbow Connector, 1/2 in Tube OD x 1/2 in NPT Thread
$34.99
Quantity: 1
Claim Your Seller Account
45 Degree Male Elbow Connector, 1/2 in Tube OD x 1/2 in NPT Thread
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

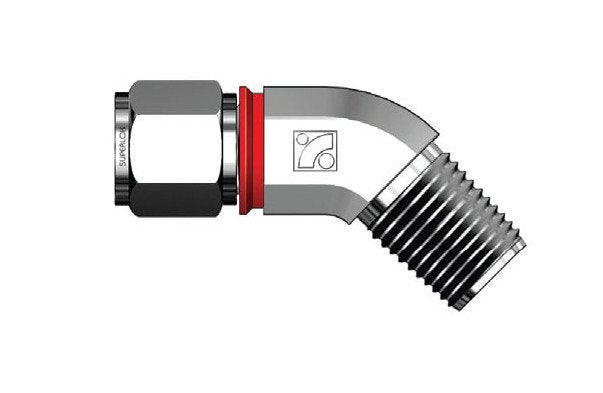

The SHMEI Series 45 Degree Male Elbow Connector is specifically designed to connect fractional tubes securely to female National Pipe Thread (NPT). Made of high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this male elbow features the innovative i-Fitting® components that ensure perfect compression, increase installer safety, and enhance productivity. With dimensions optimized for precise fitting and compatibility with a range of industry applications, this connector solves tightening issues and offers a patented design by BMT. Ideal for high-pressure and chemical environments, this elbow meets stringent standards for durability and functionality.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

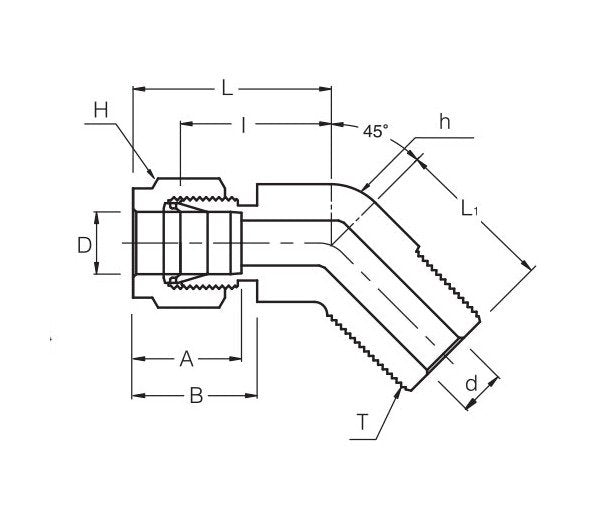

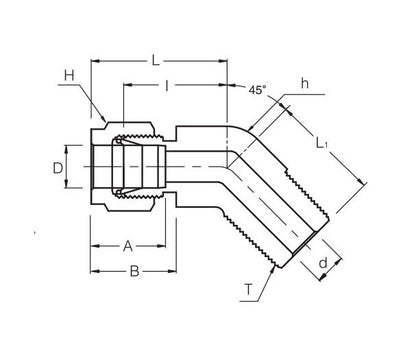

Technical Specs Angle
45 º
Technical Specs Connection Type
Male
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
21.84 mm
Technical Specs Dimension L
32.00 mm
Technical Specs Dimension L1
28.95 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
10.41 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/2 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Width Across Flat H
7/8 in
