45 Degree Male Elbow Connector, 3/8" Tube - 1/4" Thread
45 Degree Male Elbow Connector, 3/8" Tube - 1/4" Thread
SKU:SHM-ce53d7
Efficiently connect tube to thread with our durable and patented 45 Degree Male Elbow for precise fitting in industrial setups.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
45 Degree Male Elbow Connector, 3/8" Tube - 1/4" Thread
$34.99
Quantity: 1
Claim Your Seller Account
45 Degree Male Elbow Connector, 3/8" Tube - 1/4" Thread
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

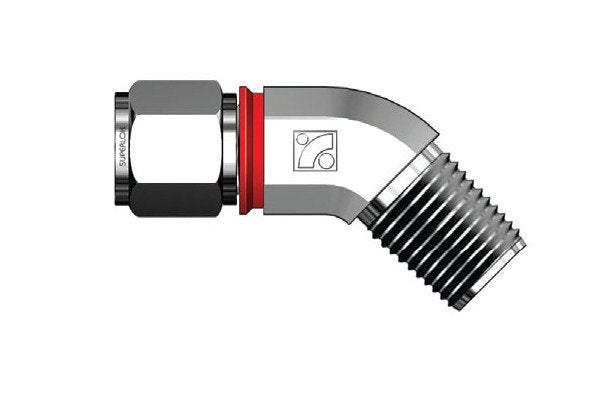

The SHMEI Series 45 Degree Male Elbow Connector is designed to effortlessly connect fractional tubes to female NPT threads. Crafted from high-quality materials such as Alloy 625, Alloy 825, Stainless Steel, and more, this male elbow ensures durability and reliable performance. Featuring a patented i-Fitting® design with a built-in gap gauge, it streamlines installation, enhances safety in high-pressure environments, and improves productivity while reducing costs. Ideal for valve connections, this male elbow is a versatile solution for various industrial applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

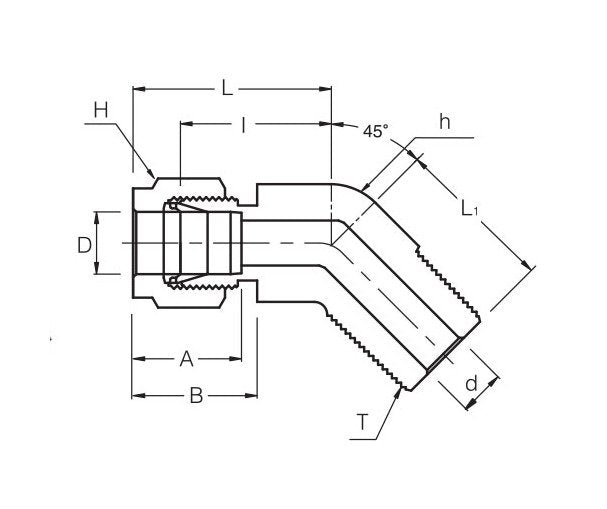

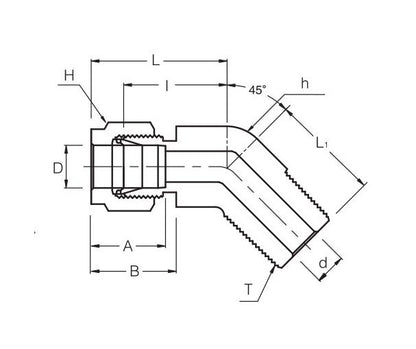

Technical Specs Angle
45 º
Technical Specs Connection Type
Male
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
20.57 mm
Technical Specs Dimension L
27.94 mm
Technical Specs Dimension L1
22.86 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
