45 Degree Male Elbow Connector - 3/8" Tube, 1/8" NPT Thread
45 Degree Male Elbow Connector - 3/8" Tube, 1/8" NPT Thread
SKU:SHM-f13444
High-quality 45 Degree Male Elbow Connector for secure tube-to-thread connections. Features innovative i-Fitting® components for safety and productivity.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
45 Degree Male Elbow Connector - 3/8" Tube, 1/8" NPT Thread
$24.99
Quantity: 1
Claim Your Seller Account
45 Degree Male Elbow Connector - 3/8" Tube, 1/8" NPT Thread
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

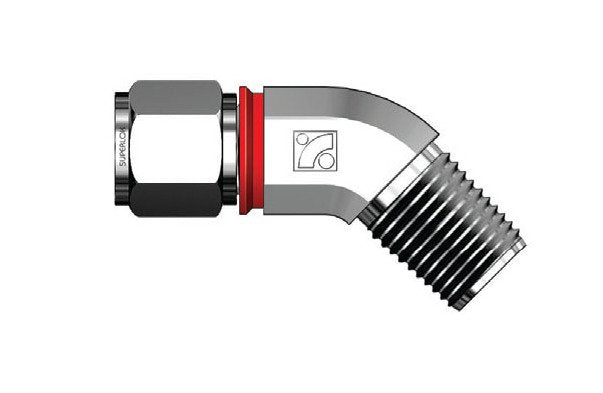

The SHMEI Series 45 Degree Male Elbow Connector is designed to seamlessly connect fractional tubes to female NPT threads. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this connector guarantees durability and reliability. The innovative i-Fitting® components ensure perfect compression, enhanced safety in high-pressure environments, and increased productivity. With dimensions meeting industry standards, this connector is ideal for valve connections in various applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

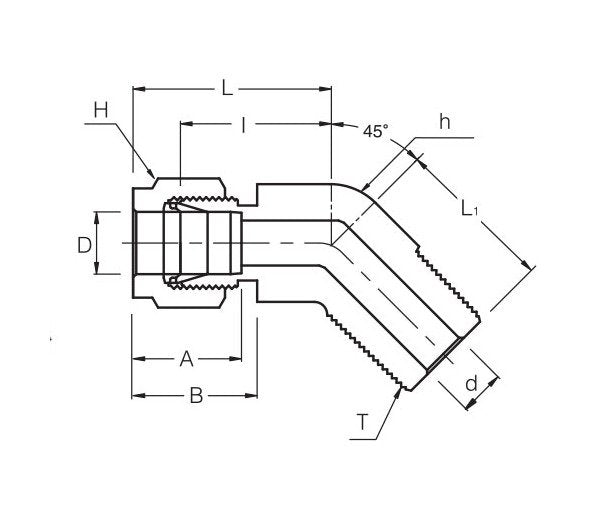

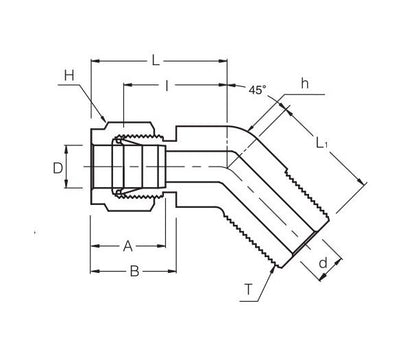

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Angle
45 º
Technical Specs Connection Type
Male
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
20.57 mm
Technical Specs Dimension L
27.94 mm
Technical Specs Dimension L1
18.28 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/8 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
