45 Degree Male Elbow Connector for 3/8in Tubes with NPT Threads

Name: 45 Degree Male Elbow Connector for 3/8in Tubes with NPT Threads
Brand: Superlok-Mako Products LLC
SKU: SHM-d4517e
Price: 24.99 USD
Availability: OutOfStock

SKU:SHM-d4517e

High-quality 45° male elbow for 3/8in tubes, NPT threads. i-Fitting technology ensures precise compression and safety.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

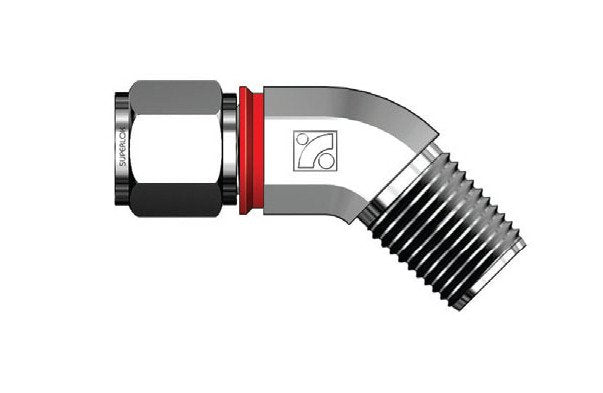

The SHMEI Series 45 Degree Male Elbow is engineered to connect 3/8in tubes to female NPT threads with precision and reliability. Crafted from high-quality materials such as Alloy 625, Stainless Steel, and more, this male elbow ensures durable performance in various environments. Featuring innovative i-Fitting® components including a built-in gap gauge for perfect compression, this connector enhances installer safety, productivity, and cost-efficiency. With dimensions designed for optimal fit, this male elbow is ideal for valve connections and meets stringent industry standards.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

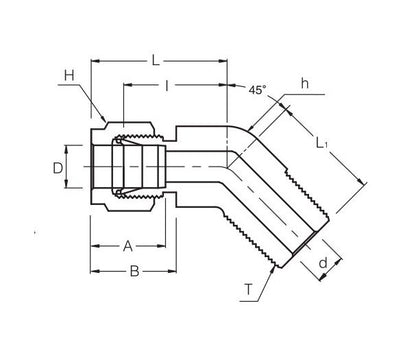

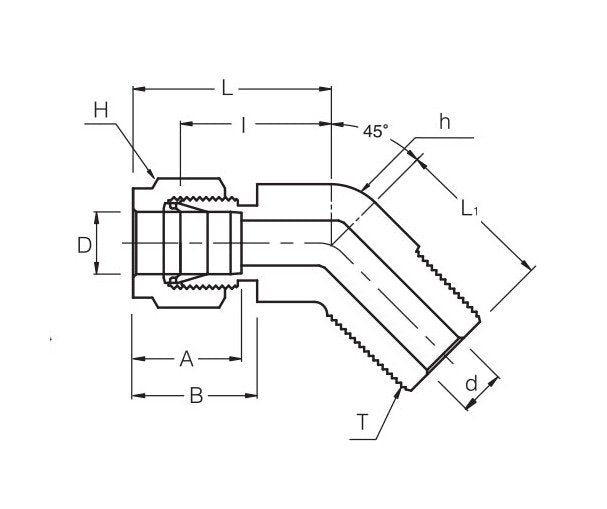

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Angle

45 Âº

Technical Specs Connection Type

Male

Technical Specs Dimension A

16.76 mm

Technical Specs Dimension B

19.30 mm

Technical Specs Dimension I

21.84 mm

Technical Specs Dimension L

29.21 mm

Technical Specs Dimension L1

24.13 mm

Technical Specs Material

Technical Specs Minimum Dimension D

7.11 mm

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Thread Size T

3/8 in

Technical Specs Thread Type

National Pipe Thread (NPT)

Technical Specs Tube Outside Diameter D

3/8 in

Technical Specs Width Across Flat H

11/16 in
