45 Degree Positionable Male Elbow, 3/4 inch Tube OD

Name: 45 Degree Positionable Male Elbow, 3/4 inch Tube OD
Brand: Superlok-Mako Products LLC
SKU: SPH-f232ba
Price: 29.99 USD
Availability: OutOfStock

SKU:SPH-f232ba

Enhance connections with precision using the SPHMEI 45 Degree Male Elbow for 3/4 inch tubes. Improve safety, productivity, and efficiency in valve installations.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

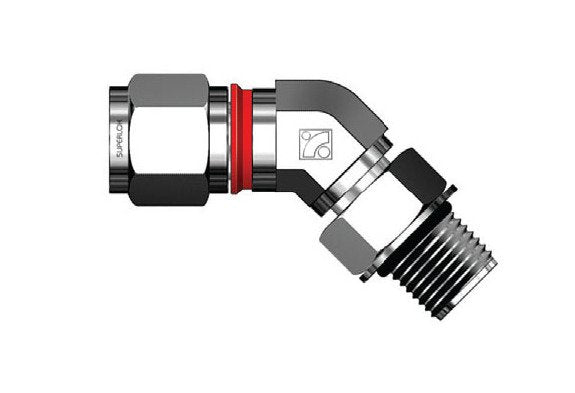

The SPHMEI Series 45 Degree Positionable Male Elbow is a high-quality fitting designed to connect fractional tubes to SAE/MS straight threads with precision and reliability. Crafted from a range of durable materials including Alloy 625, Stainless Steel, and more, this male elbow ensures secure connections in high-pressure and hazardous environments. Featuring the innovative i-Fitting® design with a built-in gap gauge, it eliminates over-tightening risks, enhances installer safety, boosts productivity, and reduces costs. With dimensions designed for optimal performance and compatibility, this male elbow is ideal for valve connections, offering industry-leading quality and functionality.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

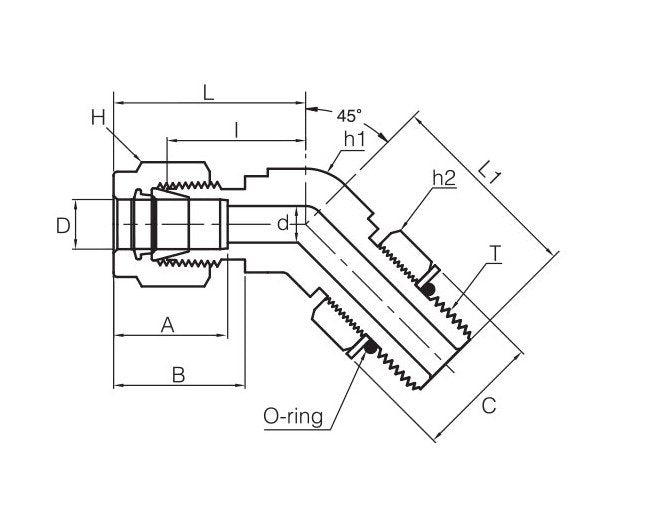

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Angle

45 Âº

Technical Specs Connection Type

Male

Technical Specs Dimension A

24.38 mm

Technical Specs Dimension B

24.84 mm

Technical Specs Dimension C

36.58 mm

Technical Specs Dimension I

29.72 mm

Technical Specs Dimension L

39.88 mm

Technical Specs Dimension L1

47.24 mm

Technical Specs Material

Technical Specs Minimum Dimension D

15.75 mm

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Straight Thread T U

1-1/16-12 mm

Technical Specs Tube Outside Diameter D

3/4 in

Technical Specs Width Across Flat H

1-1/8 in

Technical Specs Width Across Flat H1

1-1/8 in

Technical Specs Width Across Flat H2

1-1/4 in
