45-Degree Positionable Male Elbow Tube Connector

Name: 45-Degree Positionable Male Elbow Tube Connector
Brand: Superlok-Mako Products LLC
SKU: SPH-6e1ba1
Price: 29.99 USD
Availability: OutOfStock

SKU:SPH-6e1ba1

Enhance tube connectivity with precision using our 45-Degree Positionable Male Elbow Tube Connector, featuring patented i-Fitting® design for safety and efficiency.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

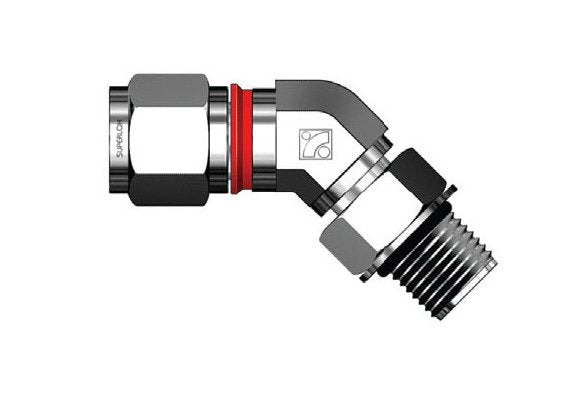

The SPHMEI Series 45-Degree Positionable Male Elbow Tube Connector is engineered to seamlessly connect 12mm Metric Tubes to SAE/MS Straight Threads. Crafted from high-quality materials like Alloy 625, Stainless Steel, and more, this male elbow features an innovative i-Fitting® design that ensures perfect compression, enhancing safety in high-pressure environments. With its patented check ring acting as a gap gauge, this male elbow eliminates over-tightening issues, improving productivity and reducing costs. Ideal for valve connections, this male elbow delivers reliability, efficiency, and compliance with industry standards.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

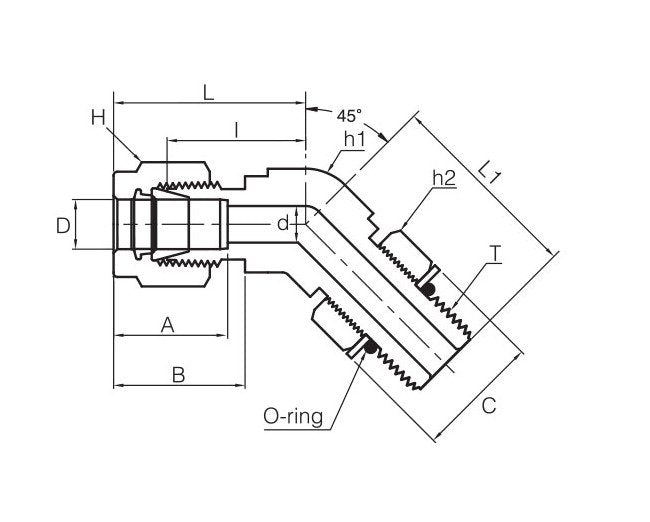

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Angle

45 Âº

Technical Specs Connection Type

Male

Technical Specs Dimension A

22.8 mm

Technical Specs Dimension B

21.8 mm

Technical Specs Dimension C

25.6 mm

Technical Specs Dimension I

21.8 mm

Technical Specs Dimension L

32.00 mm

Technical Specs Dimension L1

32.2 mm

Technical Specs Material

Technical Specs Minimum Dimension D

9.5 mm

Technical Specs Standard Size

6 to 25 mm

Technical Specs Straight Thread T U

3/4-16 mm

Technical Specs Tube Outside Diameter D

12 mm

Technical Specs Width Across Flat H

22 mm

Technical Specs Width Across Flat H1

20.6 mm

Technical Specs Width Across Flat H2

22.2 mm
