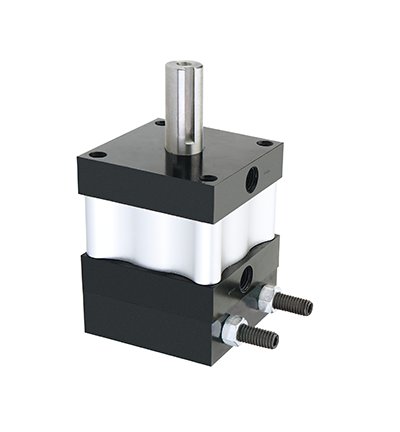

45 Degree Rotary Vane Actuator - 175 in-lb Torque
45 Degree Rotary Vane Actuator - 175 in-lb Torque
SKU:ROT-0d6c24
High-torque rotary vane actuator with 45° rotation angle for precise, continuous motion. Zero backlash & patented seals for durability.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
45 Degree Rotary Vane Actuator - 175 in-lb Torque
$799.99
Quantity: 1
Claim Your Seller Account
45 Degree Rotary Vane Actuator - 175 in-lb Torque
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 45 Degree Rotation Angle and 175 Inch-Pound Turn-Act Rotary Vane Actuator offers precision and reliability for a wide range of applications. With a single shaft and maximum torque of 175 in-lb, it ensures zero backlash, precise repeatability, and continuous full torque throughout rotation. This actuator features patented urethane seals for long cycle life and non-lube service. Optional stop cushioning and position feedback enhance adaptability.
Product Specifications
Features Features
Stop Cushioning (Optional)Position Feedback (Optional)16 base Comp-Act®'s with torque outputs from 87 in.lbs to 1000 in.lbs.Rotations 45, 90,180 & 270 degreesOne moving part providing:Zero BacklashNo loss of motion.Precise RepeatabilityContinuous full torque throughout the rotationPatented Urethane seals for:Long cycle life and non-lube serviceOptions and modifications to fit your application
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
2.9 in
Specifications Maximum Torque
175 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
3.03 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
45 º | Indexing/Multi-Position (Optional)
Specifications Shaft Length Or Table Height
1.75 in
Specifications Shaft Or Table Diameter
0.75 in
Specifications Standard
english_2_1_2
Specifications Technology Type
Hydraulic (Optional) | Pneumatic
