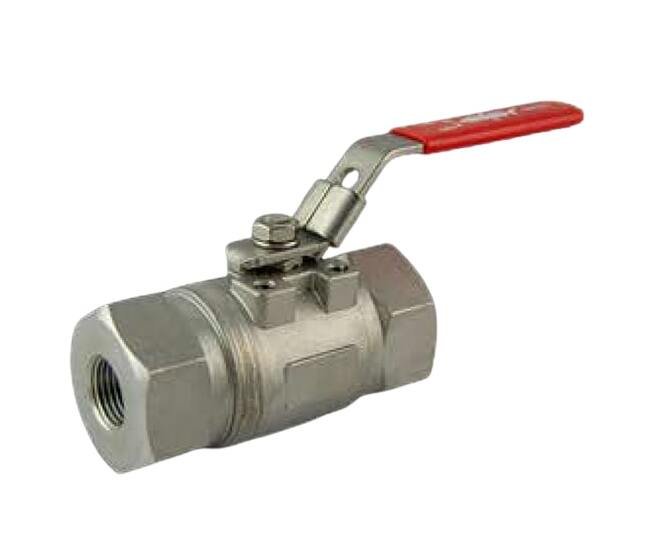

  • 4500 Class 2-Piece 3/8in NPT Threaded Ball Valve - Image 2
1 2
Superlok-Mako Products LLC →

4500 Class 2-Piece 3/8in NPT Threaded Ball Valve

4500 Class 2-Piece 3/8in NPT Threaded Ball Valve

100-801715

High-pressure 2-Piece Ball Valve: 4500 Class, 3/8in NPT, ASME B16.34 & ISO 5211 Compliant

$119.99
$119.99
Sale

Initiate Order

4500 Class 2-Piece 3/8in NPT Threaded Ball Valve

4500 Class 2-Piece 3/8in NPT Threaded Ball Valve

$119.99

Quantity: 1

Claim Your Seller Account

4500 Class 2-Piece 3/8in NPT Threaded Ball Valve

4500 Class 2-Piece 3/8in NPT Threaded Ball Valve

$119.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 10000S Series 3/8-inch NPT Threaded Ball Valve, part of the Class 4500 line, features a reduced port design with a pressure rating of 10,000 psi. This valve meets ASME B16.34, ISO 5211, and NACE MR-0175 standards, ensuring high-quality performance. With a floating ball, locking lever handle, seal welding, and pressure testing to API 598, this valve guarantees durability and reliability in industrial applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Features Features
Wall Thickness - ASME B16.34 Class 4500Floating BallISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598

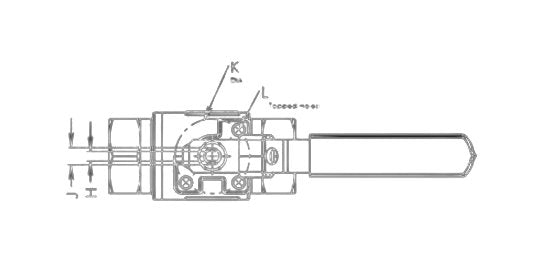

Technical Specs Dimension A
0.25 in
Technical Specs Dimension B
3.54 in
Technical Specs Dimension C
2.22 in
Technical Specs Dimension D
5.00 in
Technical Specs Dimension E
1.63 in
Technical Specs Dimension F
1.06 in
Technical Specs Dimension G
0.15 in
Technical Specs Dimension H
0.195 in
Technical Specs Dimension J
0.311 in
Technical Specs Dimension K
1.417 in
Technical Specs Flow Coefficients Cv
10
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
100 in·lb
Technical Specs Mounting Pad Sizes
F03
Technical Specs Port Configuration
Reduced Port
Technical Specs Port Size
3/8 in
Technical Specs Pressure Rating
10000 psi
Technical Specs Thread Size L
1/4 in.-20
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
2.04 kg
