451 Newton Spindle Motor
451 Newton Spindle Motor
SKU:SPI-d4f557
High-performance linear spindle gearbox motor with maintenance-free operation and precise positioning. Ideal for institutional and government procurement.
Regular price
$639.99
Regular price
Sale price
$639.99
Unit price
per
Initiate Order
451 Newton Spindle Motor
$639.99
Quantity: 1
Claim Your Seller Account
451 Newton Spindle Motor
$639.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

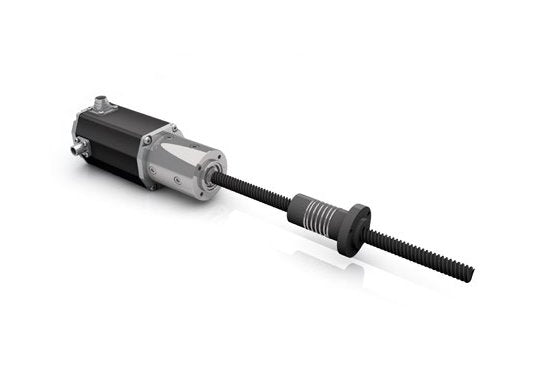

The 451 Newton (N) Nominal Force Spindle Motor is a high-performance linear spindle gearbox motor designed for optimal efficiency and precise positioning. With options for brush and brushless DC motors, and features including maintenance-free operation and coated stainless steel spindle, this motor ensures reliability and durability. It offers easy configuration of up to 14 positions, several BUS interfaces, and excellent transmission efficiency of 90%. Ideal for institutional and government procurement, this motor meets European Conformity (CE) and Underwriters Laboratories (UL) standards.
Product Specifications
Features Features
IO ModeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeDigital inputsDigital outputsAnalog inputsFeedback integratedOscilloscope software availableCondition monitoringProgrammableVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Peak Force
457 N
Technical Specs Feedback Integrated
1024 cycles/rev | 2000 cycles/rev
Technical Specs Gearbox Reduction
6.25 i
Technical Specs Gear Type
LSG 13 | Planetary Gearboxes (PLG 52)
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Stroke
150 mm
Technical Specs Maximum Stroke With Anti Backlash Nut
134 mm
Technical Specs Nominal Current
3.1 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Force
451 N
Technical Specs Nominal Speed
87 mm/s
Technical Specs Peak Force
680 N
Technical Specs Peak Force With Anti Backlash Nut
450 N
Technical Specs Permissible Peak Current
5.0 A
Technical Specs Permissible Peak Current With Anti Backlash Nut
3.1 A
Technical Specs Product Availability
Standard Product
Technical Specs Transmission Efficiency
90 %
