The 45CB525 Single Flange CB Element is designed for high-performance drum clutches and brakes applications. With a torque rating of 260,000 lb·in, maximum speed of 670 rpm, and a durable friction lining thickness of 0.33 in, this element ensures reliable operation even in demanding industrial environments. Weighing 262 lb, it offers a friction area of 675 in² and 27 friction shoes for enhanced stability. Meeting rigorous industry standards, this CB element delivers precision and efficiency required by government and institutional buyers.
Ready to Grow Without Cash Flow Constraints?

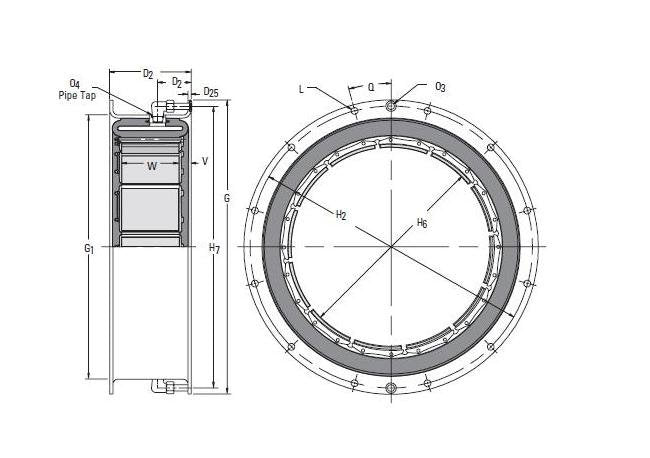

Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
3/4-14
Specifications Air Tube Cavity
430 in³ | 7.05 dm³
Specifications Angle Q
7.500 º
Specifications Bolt Hole Size L
0.750 in | 19 mm
Specifications Centrifugal Loss Constant Cs
4.42 E-06 bar/rpm2 | 64 E-06 psi/rpm2
Specifications Dimension D2
6.94 in | 176 mm
Specifications Dimension D24
2.75 in | 70 mm
Specifications Dimension D25
0.28 in | 7 mm
Specifications Dimension G
53.625 in | 1362.1 mm
Specifications Dimension G1
50.69 in | 1287 mm
Specifications Dimension H2
52.125 in | 1324 mm
Specifications Dimension H6
45.19 in | 1148 mm
Specifications Dimension H7
52.25 in | 1327 mm
Specifications Dimension O3
0.63 in | 16 mm
Specifications Dimension V
0.84 in | 21 mm
Specifications Friction Area
675 in² | 4354 cm²
Specifications Friction Shoe Width W
5.25 in | 133 mm
Specifications Inertia
1115 lb·ft² | 46.83 kg·m²
Specifications Maximum Speed
670 rpm
Specifications Minimum Drum Diameter
44.75 in | 1137 mm
Specifications New Friction Lining Thickness
0.33 in | 8 mm
Specifications Number Of Friction Shoes
27
Specifications Number Of Mounting Holes
24
Specifications Size
45CB525
Specifications Torque Rating 75 Psi55 Bar
260000 lb·in | 29400 Nm
Specifications Weight
262 lb | 119 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
