46 Series Locking Wire Saddle Standoff 1000/bag Nylon 66
46 Series Locking Wire Saddle Standoff 1000/bag Nylon 66
SKU:03W-f2c90c
Durable 46 Series Standoff for secure wire routing. Nylon 66 material. Meets UL94V-0 fire safety standard. Customizable spacing heights.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
46 Series Locking Wire Saddle Standoff 1000/bag Nylon 66
$29.99
Quantity: 1
Claim Your Seller Account
46 Series Locking Wire Saddle Standoff 1000/bag Nylon 66
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 46 Series Locking Wire Saddle Standoff is a reliable wire routing device made of Nylon 66, ensuring durability and safety. With a UL94V-0 material code, it meets stringent fire safety standards. This standoff features a .312-inch hole size, .595-inch width, and a 1.43-inch length, providing secure wire positioning. Its versatile design accommodates a holding range of .365 x .420 inches, offering flexibility in wire management. Ideal for institutional use, this standoff can be customized with various spacing heights upon request.

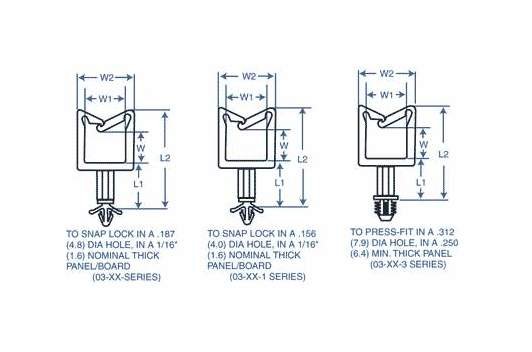

Product Specifications
Specifications Dim L1
1.00 (25.4) inches (mm)
Specifications Dim L2
1.43 (36.3) inches (mm)
Specifications Dim W2
.595 (15.1) inches (mm)
Specifications Holding Range W X W1
.365 x .420 (9.3 x 10.7) inches (mm)
Specifications Hole Size
.312 (7.9) inches (mm)
Specifications Material Code
UL94V-0
Specifications Remark
Additional spacing heights (L1) available-Inquiries welcome.
