465N Constant Force Electric Cylinder - Dunkermotoren BG 65Sx50
465N Constant Force Electric Cylinder - Dunkermotoren BG 65Sx50
SKU:ELE-f9828a
Powerful 465N Electric Cylinder: 600mm stroke, brushless motor, high efficiency, precise positioning. CE & UL certified.
Regular price
$849.99
Regular price
Sale price
$849.99
Unit price
per
Initiate Order
465N Constant Force Electric Cylinder - Dunkermotoren BG 65Sx50
$849.99
Quantity: 1
Claim Your Seller Account
465N Constant Force Electric Cylinder - Dunkermotoren BG 65Sx50
$849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

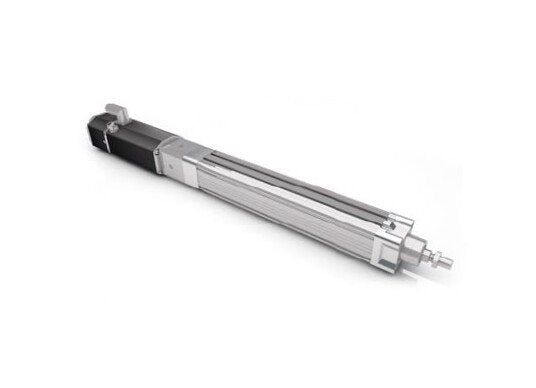

The 465 Newton (N) Constant Force Electric Cylinder by Dunkermotoren offers reliable performance with strokes up to 600mm. Featuring a brushless DC servomotor, lead screw design, and twist-protected thrust rod, this cylinder is a versatile alternative to pneumatic cylinders. With a peak force of 600N, maximum traverse speed of 70mm/s, and integrated feedback of 4096 cycles/rev, it ensures precise and efficient operation. Certified to meet European Conformity (CE) and Underwriters Laboratories (UL) standards, this electric cylinder is compact, low-noise, and maintenance-free, making it ideal for diverse industrial applications.
Product Specifications
Additional Information Additional Information
Compact and space savingEasy configuration of max. 14 positions (PI motor)Several BUS interfaces availablePLG 52 on request
Features Features
IO modeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeHigh efficiencyLow noiseSelf-locking ratios availableHigh forceHigh dynamicDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableVibration resistance
Note Note
Not applicable for motions on mechanical stop.
Technical Specs Brands
Dunkermotoren
Technical Specs Constant Force
465 N
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Lifetime L10
100 km
Technical Specs Maximum Acceleration
1 mm/s²
Technical Specs Maximum Traverse Speed
70 mm/s
Technical Specs Motor Type
BG 65Sx50
Technical Specs Nominal Current
7 A
Technical Specs Nominal Direct Current Dc Voltage
40 to 48 V
Technical Specs Peak Current 2 Second S
20 A
Technical Specs Peak Force
600 N
Technical Specs Protection Class
Ingress Protection (IP54S)
Technical Specs Repeatability
0.07 mm
Technical Specs Spindle Pitch
2.5 mm
Technical Specs Spindle Version
LS (Lead Screw)
Technical Specs Stroke Length
100 mm | 200 mm | 300 mm | 400 mm | 500 mm | 600 mm
