48-Inch ESD Desiccator Cabinet - 1530 Series
48-Inch ESD Desiccator Cabinet - 1530 Series
SKU:153-bdbcc5
Secure 48in ESD Desiccator Cabinet for humidity-sensitive items. Ideal for ESD control in cleanrooms.
Regular price
$2,699.99
Regular price
Sale price
$2,699.99
Unit price
per
Initiate Order
48-Inch ESD Desiccator Cabinet - 1530 Series
$2,699.99
Quantity: 1
Claim Your Seller Account
48-Inch ESD Desiccator Cabinet - 1530 Series
$2,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

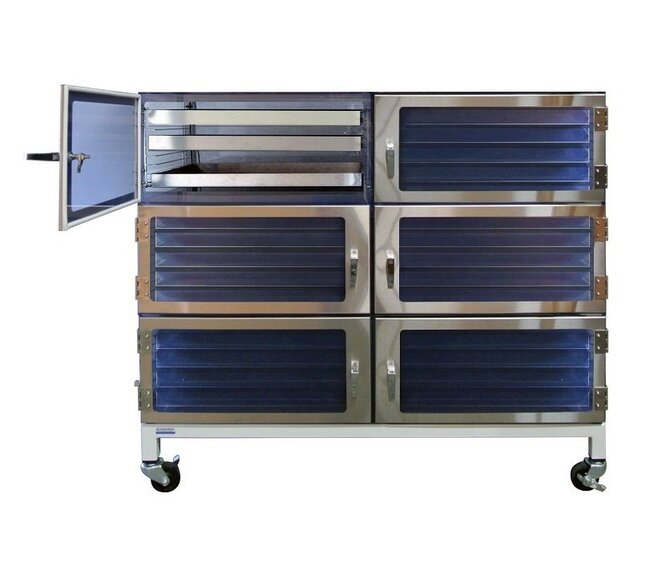

The 48-inch 1530 Series ESD Desiccator Cabinet provides a secure, electro-static safe, and oxygen-free environment for humidity-sensitive samples, products, and electronics. With a static dissipative PVC construction, this 6-chamber cabinet features 30 stainless steel drawers, adjustable shelves, and optional gas purge controls for precise humidity and oxygen level management. Ideal for ESD control in cleanroom settings, it eliminates static charges, maintains low humidity levels, and prevents sample degradation. Enhance your storage solutions with this reliable and durable ESD cabinet.
Product Specifications
Additional Information Additional Information
Stainless steel door frame and door hinge.Wire rack for holding shelving and trays.Lift-and-turn latches with a long lever for easy access.Single-piece Santoprene seal.
Applications 0
Sliding Drawer Storage
Options Options
Gas-in Port & Pressure Relief Valve (1/4" OD tubing fitting)One-Channel Automatic Purge Control Unit (PCU) with one humidity sensor.Flowmeter with an external valve mount. Flowmeter range is from 2-20 SCFH air. (It is not required if you order a PCU.)Big Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Small Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14 ºF to 140 ºF)Epoxy powder coated steel stand with caster (including two locking). Available in 30'' and 35'' height with an optional upgrade to leveling mounts.Cam lock with an option to have the same or different key for each door. Please note that the price for the cam lock is per door.Stainless steel locking bracket for use with a padlock. Please note that the price for the locking bracket is per door.Stainless steel bottom plate installed on the bottom of each chamber.For applications that require isolated chambers, the back plenum needs to be removed.
Specifications Chamber Depth
18 in
Specifications Chamber Height
12 in
Specifications Chamber Width
24 in
Specifications Door Opening Height
10.125 in
Specifications Door Opening Width
23.375 in
Specifications Internal Drawer Depth
15.25 in
Specifications Internal Drawer Height
1.5 in
Specifications Internal Drawer Width
21 in
Specifications Material
Static Dissipative Polyvinyl Chloride (PVC)
Specifications Material Thickness
1/4 in
Specifications Number Of Chambers
6
Specifications Overall Depth
18 in
Specifications Overall Height
36 in
Specifications Overall Width
48 in
Specifications Shelf Usable Space Depth
15.5 in
Specifications Shelf Usable Space Width
21.5 in
Specifications Total Number Of Stainless Steel Drawers
30
