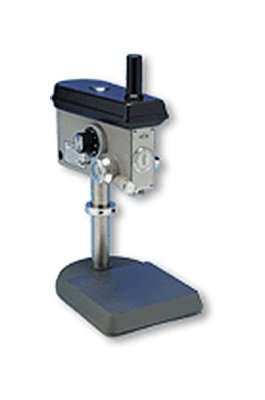

483mm Column Servo Drill Press with Collet Spindle
483mm Column Servo Drill Press with Collet Spindle
SKU:DRI-1b4d06
High-precision 483mm Column Servo Drill Press for laboratory, prototype & production work. Variable speed spindle & precise depth control.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
483mm Column Servo Drill Press with Collet Spindle
$799.99
Quantity: 1
Claim Your Seller Account
483mm Column Servo Drill Press with Collet Spindle
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 483mm Column Servo Standard Drill Press with Collet Spindle is the ideal choice for laboratory, prototype, and precision production work. This versatile drill press comes in both chuck and collet models, offering a high degree of precision with a variable speed spindle ranging from 200 to 20,000 RPM. Its high accuracy down stop ensures precise drilling depth control down to 0.001 inches, making it perfect for intricate projects. With features like a keyless Albrecht chuck for quick drill changes and a wide selection of bases and accessories, this drill press is a must-have for professionals seeking top-notch performance and reliability.
Product Specifications
Features Features
Inch and Metric versionsDrill holes down to 0.002â / 0.05mm Dia.Spindle runout: 0.0002" / 0.005 mm TIRHigh accuracy down stop for drilling depth control (0.001â / 0.05mm per division)Variable speed spindle (200-20,000 RPM)Quill travel (stroke): 1.5â / 38.1mmKeyless Albrecht chuck versions for quick and easy drill change;standard 0-1/8" / 0-3 mm; optional 0-1/16" / 0-1.5 mmWW collet versions for less run out and improved accuracy;0.0039"-0.252" / 0.1-6.4 mm collet sizes availableGraduated dial gauge for depth control(0.001â / 0.05mm per division)Wide selection of bases and accessoriesDrill capacity: to 1/16" in inconelto 1/8" in steelto 3/16" in aluminum (collet only)Electrical: 115 volts AC, 50/60 Hz, 2 amps(220V/115V transformer available)
Technical Specs Base
Fine grain, ground cast iron base
Technical Specs Brands
Servo

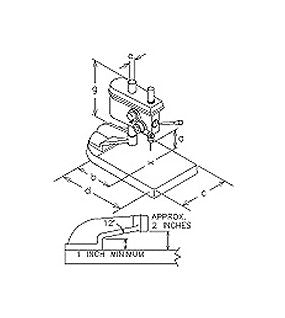

Technical Specs Column Diameter Through Head E
1.25 in | 31 mm
Technical Specs Column Length G
19 in | 483 mm
Technical Specs Footprint Depth
11.8 in | 299 mm
Technical Specs Footprint Width
7.15 in | 181 mm
Technical Specs Maximum Distance Of Chuckcollet To Basea
14.5 in | 368 mm
Technical Specs Mt3 Spindle Weldon
Collet
Technical Specs Overall Height
25 in | 635 mm
Technical Specs Throat Depth B Spindle Cl To Column
3.5 in | 89 mm
Technical Specs Weight
21.0 lb | 9.5 kg
Technical Specs Working Base Area Depth D
6.5 in | 152 mm
Technical Specs Working Base Area Width C
6.5 in | 165 mm
