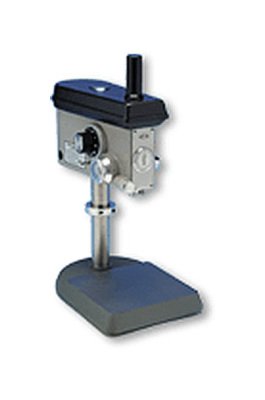

483mm Servo Standard Drill Press with Chuck Spindle
483mm Servo Standard Drill Press with Chuck Spindle
SKU:DRI-97b625
Precision drill press with variable speed spindle, high accuracy, and versatile chuck options for professional drilling tasks.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
483mm Servo Standard Drill Press with Chuck Spindle
$1,499.99
Quantity: 1
Claim Your Seller Account
483mm Servo Standard Drill Press with Chuck Spindle
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 483mm Servo Standard Drill Press with Chuck Spindle is a precision tool designed for laboratory, prototype, and production work. With high accuracy and a variable speed spindle ranging from 200 to 20,000 RPM, it offers versatility for drilling tasks. Featuring a Quill travel (stroke) of 1.5", keyless Albrecht chuck versions, and a wide selection of bases and accessories, this drill press ensures efficient and precise drilling operations. Ideal for both inch and metric calibration needs, it meets the demands of institutional and professional applications, providing exceptional quality and performance.
Product Specifications
Features Features
Inch and Metric versionsDrill holes down to 0.002â / 0.05mm Dia.Spindle runout: 0.0002" / 0.005 mm TIRHigh accuracy down stop for drilling depth control (0.001â / 0.05mm per division)Variable speed spindle (200-20,000 RPM)Quill travel (stroke): 1.5â / 38.1mmKeyless Albrecht chuck versions for quick and easy drill change;standard 0-1/8" / 0-3 mm; optional 0-1/16" / 0-1.5 mmWW collet versions for less run out and improved accuracy;0.0039"-0.252" / 0.1-6.4 mm collet sizes availableGraduated dial gauge for depth control(0.001â / 0.05mm per division)Wide selection of bases and accessoriesDrill capacity: to 1/16" in inconelto 1/8" in steelto 3/16" in aluminum (collet only)Electrical: 115 volts AC, 50/60 Hz, 2 amps(220V/115V transformer available)

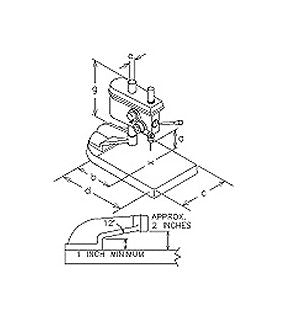

Technical Specs Base
Fine grain, ground cast iron base
Technical Specs Brands
Servo
Technical Specs Column Diameter Through Head E
1.25 in | 31 mm
Technical Specs Column Length G
19 in | 483 mm
Technical Specs Footprint Depth
11.8 in | 299 mm
Technical Specs Footprint Width
7.15 in | 181 mm
Technical Specs Maximum Distance Of Chuckcollet To Basea
13 in | 330 mm
Technical Specs Mt3 Spindle Weldon
Chuck
Technical Specs Overall Height
25 in | 635 mm
Technical Specs Throat Depth B Spindle Cl To Column
3.5 in | 89 mm
Technical Specs Weight
21.0 lb | 9.5 kg
Technical Specs Working Base Area Depth D
6.5 in | 152 mm
Technical Specs Working Base Area Width C
6.5 in | 165 mm
