48ST, Tenney Strat Altitude Chamber
48ST, Tenney Strat Altitude Chamber
SKU:TEN-a73b61
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
48ST, Tenney Strat Altitude Chamber
$49.99
Quantity: 1
Claim Your Seller Account
48ST, Tenney Strat Altitude Chamber
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

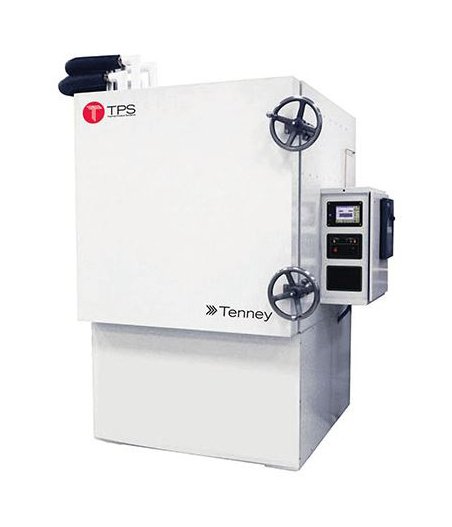

Tenney’s Tenney Strat Altitude Chambers simulate altitudes up to 200,000 feet. With an overall temperature range of -70°C to +177°C, humidity capabilities of 20% to 98% RH, and workspace sizes ranging from 5- to 64-cubic-feet, this highly developed line of altitude chambers offers one of the broadest selections in the industry. We are confident that our solid altitude chamber construction and precise operating systems will provide the exacting performance and a high degree of reliability for your altitude testing needs.
Product Specifications
Specifications Cooling Water Flow Rate 20c
6 gpm | 9 gpm | 12 gpm
Specifications Current
120 A | 149 A | 183 A
Specifications Exterior Depth
123 1/2 in | 281 in | 3131 mm | 7137 mm
Specifications Exterior Height
91 in | 231 in | 2311 mm | 5867 mm
Specifications Exterior Width
196 in | 77 in | 1956 mm | 4978 mm
Specifications Features
Continuously welded, stainless steel, vapor-tight interior liners | Control tolerance is ±0.3°C and ±2% RH typical after stabilization | Linear pressure transducer to measure altitude | Non-corroding humidity system | Low-water protection on humidity system | Vertical-down recirculating conditioning stream
Specifications Fuse Current
150 A | 200 A | 250 A
Specifications Heater Capacity
16
Specifications Humidifier
3 W | 1.5 gph
Specifications System Horsepower
15 hp | 20 hp | 30 hp
Specifications Voltage
230 V
Specifications Weight
11500 lb | 5216 kg
Specifications Workspace Depth
36 in | 91 in | 914 mm | 2311 mm
Specifications Workspace Height
48 in | 122 in | 1219 mm | 3099 mm
Specifications Workspace Width
48 in | 122 in | 1219 mm | 3099 mm
