4950 Mobile Prep Station - Portable Filtration System
4950 Mobile Prep Station - Portable Filtration System
SKU:POR-f6a4f7
Enhance productivity with the mobile air filtration powerhouse - 4950 Mobile Prep Station!
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
4950 Mobile Prep Station - Portable Filtration System
$2,399.99
Quantity: 1
Claim Your Seller Account
4950 Mobile Prep Station - Portable Filtration System
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

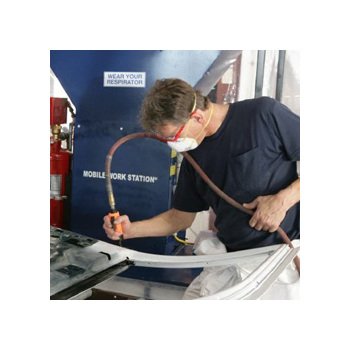

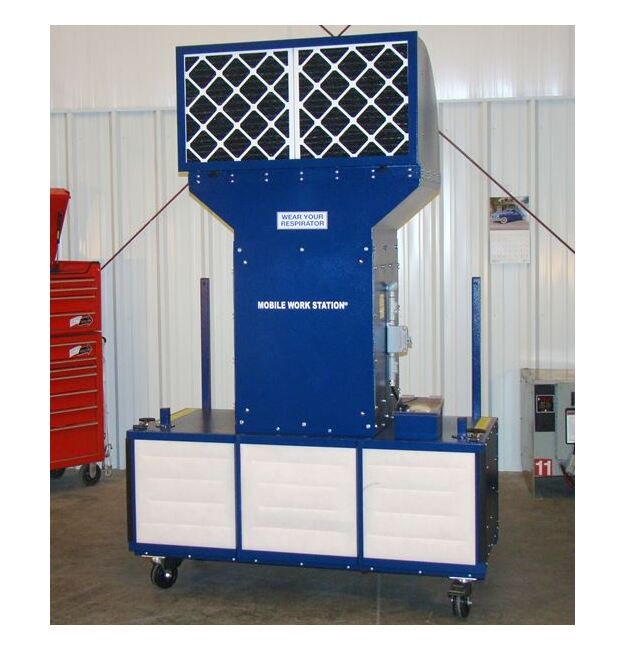

The 4950 Mobile Prep Station is a versatile and portable air filtration system designed for various industrial applications. With adjustable filter racks catering to different filtration needs, this system offers flexibility for capturing airborne particulates and fumes during painting, sanding, welding, and more. It includes a hazardous location motor and controls, ensuring safety and efficiency. Featuring a durable construction of 14-gauge steel, it promises long-lasting performance. The recirculation design reduces energy costs and eliminates the need for additional ventilation modifications.
Product Specifications
Durable Construction 0
Manufactured using 14 gauge powder coated steel for long lasting durability and performance.
Efficient Filtration 0
Uses standard sized 20" x 20" filters, which are easy to replace. The standard filter set included for its multi-stage filtration system has two sets particulate filters and two sets carbon filters for the removal of odors and VOC's. The 3-Ply Link Panel filters have tested at 99.78 % efficient on paint overspray. In addition, there is a magnehelic gauge to monitor filter efficiency.
Low Maintenance 0
There are no bearings to grease or belts to change with its sealed direct drive motor.
Options 0
Units can be ordered with optional fire suppression system and/or attached curtain enclosure system. Units which include the attached curtain enclosure system have been certified EPA 6H compliant.
Safety 0
Hazardous location motor, hazardous location controls, aluminum fan wheel and aluminum inlet cone.
Savings 0
The recirculation design eliminates the need for ventilation modifications or make-up air systems, and reduces energy costs by utilizing existing heated or cooled air. The backward curved non-overloading fan wheel is constructed with hollow airfoil blades. The fan wheels are statically and dynamically balanced to provide higher airflow performance at less horsepower, and with minimum air noise.
Specifications Certification
EPA 6H compliant
Specifications Equipment Dimensions
61 x 32 x 94 1/2 in
Specifications Filter Size
20 x 20 in
Specifications Power Rating
3/4 hp
Specifications Power Requirement Frequency
60 Hz
Specifications Power Requirement Phase
Single
Specifications Power Requirement Voltage
115 V | 230 V
