4mm 4-Flute Diamond Coated Corner Radius End Mill

Name: 4mm 4-Flute Diamond Coated Corner Radius End Mill
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-ec4ca1
Price: 49.99 USD
Availability: OutOfStock

SKU:DIA-ec4ca1

Experience superior cutting performance with the 4mm 4-Flute Diamond Coated End Mill.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your cutting performance with the 4mm 4-Flute Diamond Coated Corner Radius End Mill. Featuring a specially sintered substrate, high-performance tool geometry, and exceptional diamond coating, this tool offers extended tool life exceeding 12-20 times that of uncoated ones. Precision controlled with Zoller Measuring Machine and Mitutoyo Laser Scan Meter, each tool undergoes rigorous microscopic inspection to ensure perfection. Ideal for graphite milling in the semiconductor and die and mold industries, as well as machining composite materials like CFRP and ceramics, this end mill guarantees superior results and longevity.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

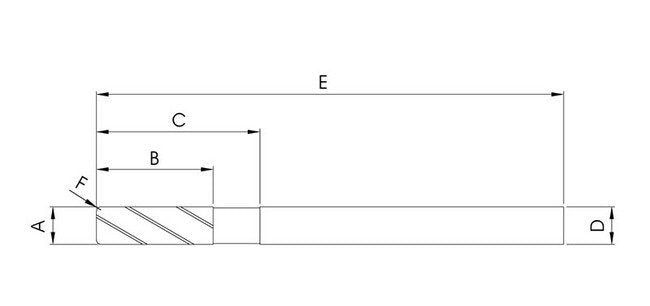

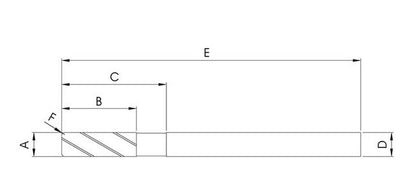

Specifications Corner Radius F

0.3/0.5 mm

Specifications Cutting Diameter A

4 mm

Specifications Flute Length B

15 mm

Specifications Number Of Flute

Specifications Overall Length E

75 mm

Specifications Reach C

20 mm

Specifications Shank Diameter D

4 mm
