4mm Single Ended Flash Lamp Molded Plug
4mm Single Ended Flash Lamp Molded Plug
SKU:HIG-e46b42
Reliable 4mm flash lamp molded plug for high current applications, with superior performance and safety features.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
4mm Single Ended Flash Lamp Molded Plug
$39.99
Quantity: 1
Claim Your Seller Account
4mm Single Ended Flash Lamp Molded Plug
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Single Ended 4mm Flash Lamp Molded Plug from the Flash Lamp Series Electrical Connectors by Connectronics offers a reliable, high current interconnection solution tailored for applications prioritizing space, weight, and temperature concerns. Featuring Multilam band contact spring finger technology, this plug ensures elevated current ratings with reduced temperature rise compared to traditional designs. Constructed with quality materials like Tellurium Copper Alloy and Beryllium Copper Alloy, and with over moldings of silicone rubber, it guarantees superior performance and enhanced safety. With a 12 kV DC voltage rating, operating temperature range from -40°C to +175°C, and compatibility up to 10,000 ft altitudes, this flash lamp plug is a versatile and durable solution for various applications including Laser Back Lighting, Illumination, and Percussion.
Product Specifications
Applications 0
LaserBack Lighting & IlluminationPercussion
Ordering Information 0
Flash lamp plugs can be ordered as single ended or double ended assemblies in any combination of molded plug or socket contact at each end. Consult factory for custom configuration part numbers.Flash lamp contacts can be ordered with or without wire terminated. connectronics offers a variety of wire constructions for use with flash lamp contacts. Consult factory for additional information.
Specifications Contact Body Material
Tellurium Copper Alloy 145, Silver Plated Per qq-s-365
Specifications Current Rating
75 A
Specifications Direct Current Dc Voltage
12 kV
Specifications Features
High Current RatingsOperating Voltage: through 12 KVDCTemperature Range: -40°C to +175°CSea Level to 10,000 ft OperationOvermolded Strain Relief available4mm, 5mm, 5.5mm and 6mm optionsStackable or Threaded options

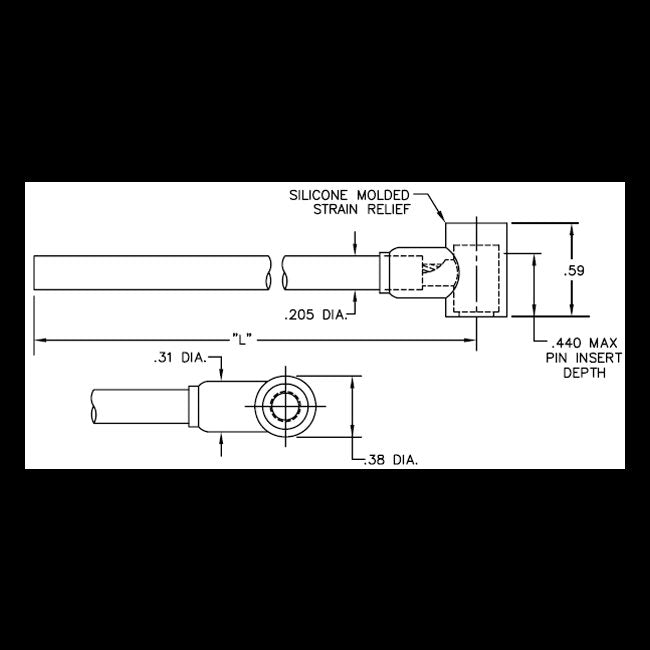

Specifications Length L
16.50 in
Specifications Molded Strain Relief Material
Silicone Rubber, Gray
Specifications Multi Lam Contact Band Spring Fingers Material
Beryllium Copper Alloy, Gold Plated Per MIL-G-45204
Specifications Sea Level Altitude
0 to 10,000 ft
Specifications Size
4 mm | 0.157 in
Specifications Wirecable Material
Assemblies supplied with wire are terminated with #12; AWG (19/25; SPC conductor with silicone insulation rated for 20 KVDC (0.205 dia.) 1 REF. connectronics part no . 066-035-01.
