5.0 kVDC Rated Standard Micapacitors
5.0 kVDC Rated Standard Micapacitors
SKU:HIG-b5f16b
High voltage mica capacitors with 100nF capacitance, 10% tolerance, and 10.0kV dielectric withstanding voltage. Ideal for high energy devices.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
5.0 kVDC Rated Standard Micapacitors
$29.99
Quantity: 1
Claim Your Seller Account
5.0 kVDC Rated Standard Micapacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

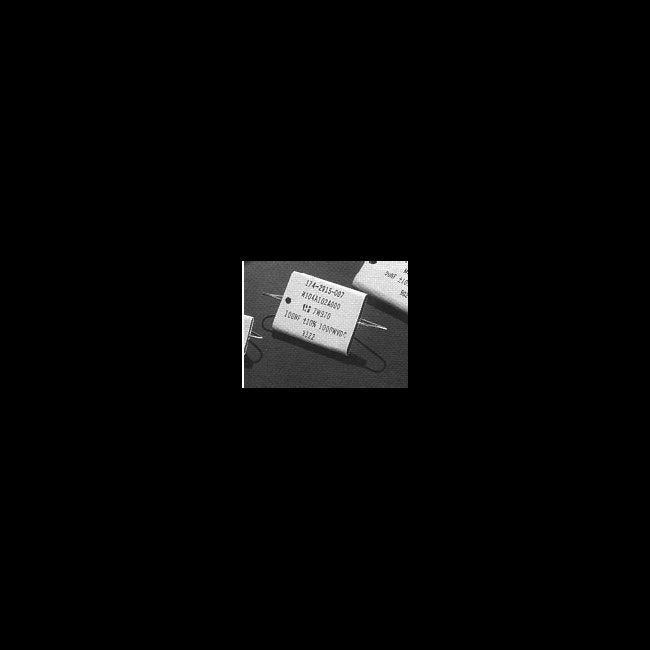

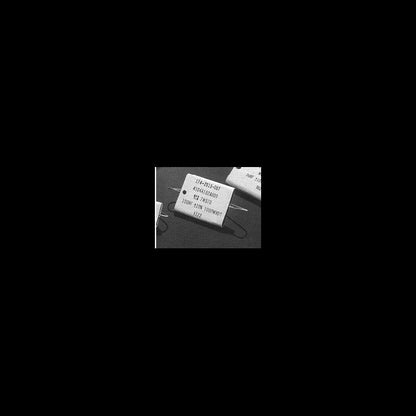

The 5.0 kVDC Rated Standard Micapacitors are high voltage mica capacitors designed for high energy devices. With a capacitance of 100 nF and a capacitance tolerance of ±10%, these micapacitors offer reliable performance. They feature a dissipation factor of 0.005 max at 25°C, 1 kHz, and a dielectric withstanding voltage of 10.0 kV proof for 5 seconds. The insulation resistance ensures electrical safety with values of 25 MΩ*µF at 125°C and 4000 MΩ*µF at 25°C. These standard parts are mylar wrapped, epoxy endcapped, and come with AWG 18 solder-coated copper wire leads. Capacitors are shipped with leads shorted for added safety.
Product Specifications
Cable Preparation Insulation Resistance
25 MΩ*µF at125°C, need not exceed 1GΩ | 4000 MΩ*µF at25°C, need not exceed 100GΩ
Specifications Capacitance
100 nF
Specifications Capacitance Tolerance
±10%
Specifications Dielectric Withstanding Voltage
10.0 kV proof for 5 seconds | 5 kV rated | 7.5 kV burn-in for 2 hours at 100°C
Specifications Dissipation Factor
0.005 Max. at 25°C, 1 kHZ

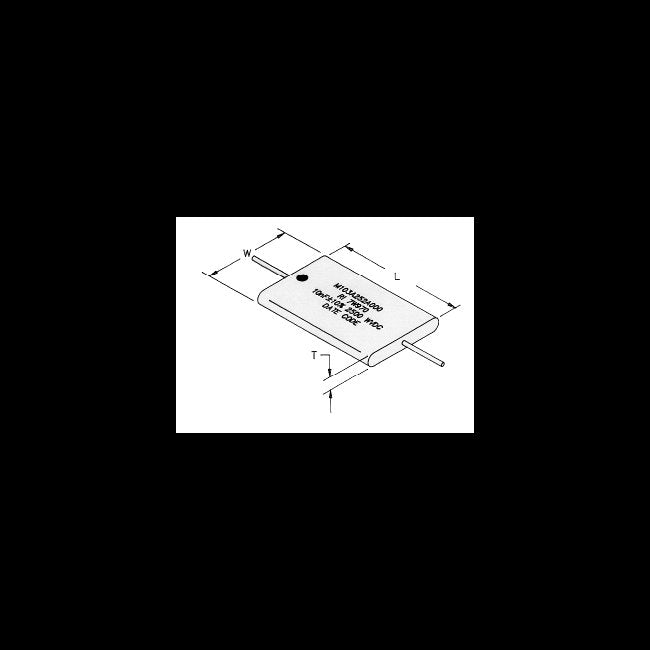

Specifications Length
3.06 in | 77.7 mm
Specifications Standardnon Standard
Standard Part
Specifications Thickness
0.31 in | 7.9 mm
Specifications Voltage Rating
5 kVDC
Specifications Width
2.01 in | 51.1 mm
