5.08mm Pitch Low Outgassing Slit Pin for PC Board - JCC
5.08mm Pitch Low Outgassing Slit Pin for PC Board - JCC
SKU:SOC-37420c
Enhance PC board assembly with high-temp resistant JCC Slit Pin for reliable performance & customization. Compliant with industry standards.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
5.08mm Pitch Low Outgassing Slit Pin for PC Board - JCC
$12.99
Quantity: 1
Claim Your Seller Account
5.08mm Pitch Low Outgassing Slit Pin for PC Board - JCC
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

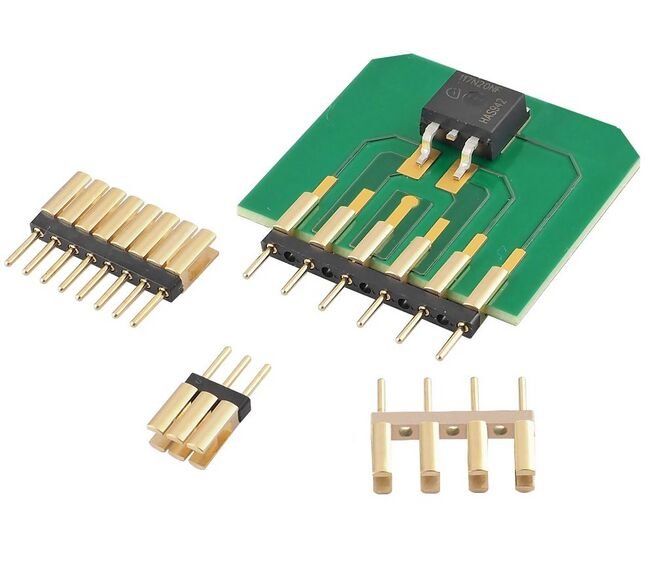

Upgrade your PC board assembly with the JCC 5.08mm Pitch Low Outgassing Slit Pin. Designed for high current loads, this pin boasts a high-temperature resistance of up to 250ºC, offering exceptional durability. With customizable pin lead diameters and superior AC dielectric strength of 300 Vrms, the pin ensures reliable performance. Constructed with brass plug material and gold plating over nickel finish for longevity. Compliant with industry standards, this slit pin is ideal for sockets for transistors and diodes, meeting the stringent requirements of DoD procurement and FAR compliance factors.
Product Specifications
Material And Finish Insulator Material
High Temperature Thermoplastic | Polyetheretherketone (PEEK)
Material And Finish Plug Finish
Gold (Au) Plating Over Nickel (Ni)
Material And Finish Plug Material
Brass
Specifications Alternating Current Ac Dielectric Strength 1 Minu
300 Vrms
Specifications High Temperature
250 ºC
Specifications Maximum Current
9 A
Specifications Minimum Insulation Resistance At 300 Volt V Direc
500 MΩ
Specifications Number Of Pins
2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12
Specifications Pitch
5.08 mm
